Acoustic wall panel Järnvik 5100 Miranus 600x24x2440 mm

Product code: JVWP-A600-VAMU

EAN: 6430049657165

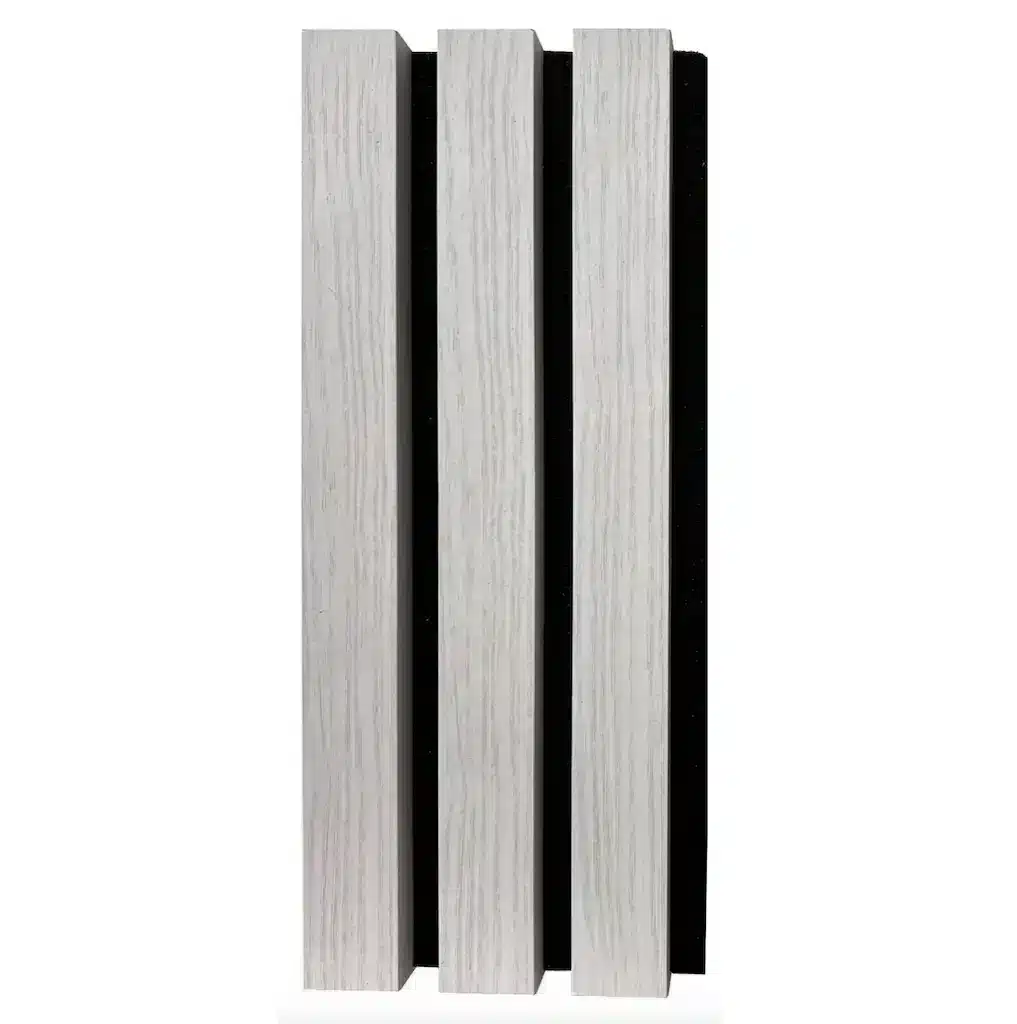

High-profile, stylish acoustic slat panel with a black felt base and a white lacquered oak wood-like pattern on top. Can be installed vertically, horizontally, or on the ceiling. The sound-insulating felt base reduces noise and echoes. The MDF slats feature a striking wood grain pattern. The acoustic felt has fire-retardant properties and belongs to fire class B1. It does not contain harmful compounds. Easy and quick to install. When installed directly on the wall, the NRC value is 0.3, sound absorption class D. When mounted on battens, the sound absorption class is A.

Technical information:

Weight: 10.8 kg
Measures: 2440 mm in length, 600 mm in width, and 24 mm in thickness
1 pc = 600 x 24 x 2440 mm (1,464m2)

EN 13501-1:2018 CLASS B, ASTM E84 CLASS A.

Acoustic wall panels installation

Acoustic panels can be installed directly onto the wall or over a framework. When installed over a framework, the panels achieve sound absorption class A.

Installation can be done using screws or adhesive.

• When using screws, attach the panel with three screws horizontally, spaced 60 cm apart.
• When using adhesive, apply it evenly across the back of the panel.
• When installing over a framework, attach with three black screws horizontally, with the framework and screwing spaced 60 cm apart.

1. Prepare the necessary tools and materials for installation.
   You will need adhesive, a fine-toothed circular saw (or handsaw), a utility knife, a measuring tape, and screws. Check each panel for any defects before installation. By installing the panels, you accept the product quality.
2. Measure the height and width of the wall. Calculate the horizontal spacing of the panels so that there is an equal amount of space on both edges. The splitting of corner panels should align between the slats, allowing the split to be made along the felt using a utility knife.
3. Cut the panels to the correct length with a circular saw and start the installation. Always ensure the panels are straight using a level or similar tool.
4. When using adhesive, apply it evenly across the back of the panel and place the panel in position. You can also use screws to assist with installation if desired.
   When using screws, position the panel and screw it in place as described above.
5. When installing the next panel, always check that the spacing between the slats remains consistent and that the panels are aligned correctly.

Horizontal or ceiling installation

The installation follows the same principles as vertical installation. When installing horizontally, the direction is always from bottom to top. When installing on the ceiling, it is recommended to use both screws and adhesive.

NOTE: If you have ceiling heating, ensure the product is compatible with the heating system by consulting the heating system provider.
