Double wall chimney system DW50 CS, 2,5m/∅115/215, stainless steel

Complete Outdoor Sauna Chimney Package in Stainless Steel

A complete stainless steel chimney package for outdoor saunas. The connection pipe diameter is 115mm, and the insulated chimney section has a diameter of 215mm. This stylish, polished stainless steel set can be extended with 0.5m and 1.0m extensions, allowing for a total height of up to 5 meters.

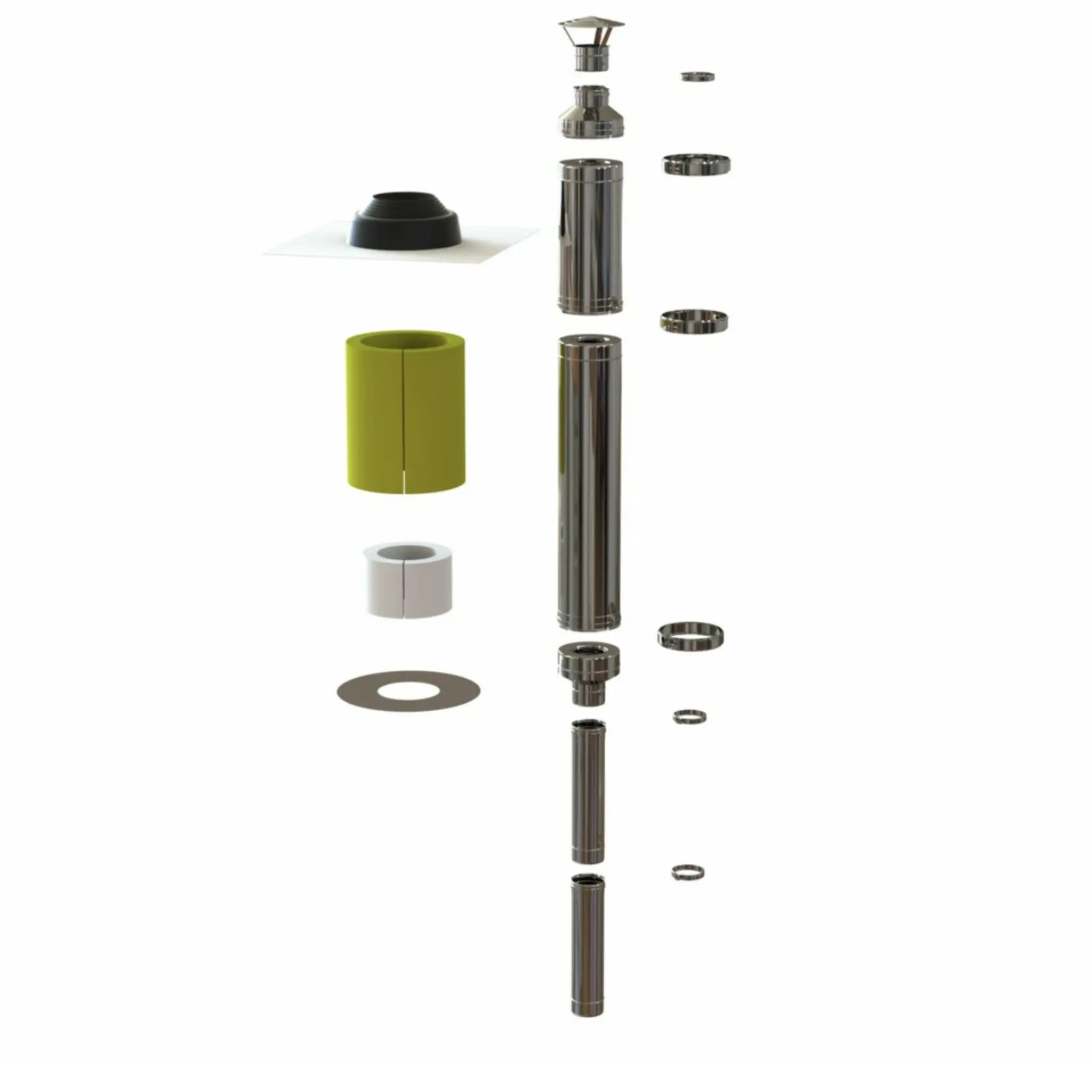

The package includes:

• 2 x 0.5m non-insulated chimney pipes
• 1.5m insulated chimney pipes (1.0m + 0.5m)
• Chimney cap
• Interior and roof penetration kit

No additional support is required for room heights under 3 meters. Above the roofline, no additional support is needed if the chimney height from the roof surface is less than 3 meters.

Technical  information:

• Height (mm): 2,500
• Diameter (mm): 215
• Flue connection diameter (mm): 115
• Product weight (kg): 45
• Color: Steel
• Material: Steel
• Temperature class: T600, resistant to soot fires
• Safety distance for insulated flue: 50mm
• Safety distance for non-insulated pipe: 500mm

Package information:

• Package width (mm): 1,000.00
• Package height (mm): 755.00
• Package depth (mm): 680.00
• Shipping weight (kg): 45.00
