Fan TTW 35000 S

The Trotec TTW 35000 S fan is the best solution for all ventilation tasks in production environments, agriculture or storage rooms where high ventilation must be achieved with minimal investment.

Thanks to the air flow rate of up to 32,400 m³ / h, which is adjustable in two stages, the necessary air exchange can be achieved in large rooms or halls by using a powerful drum fan.

Thanks to the chassis, the galvanized steel housing is easy to transport and move – its angle of inclination can be varied up to the vertical current position. In this way, the airflow can be directed specifically to high wall or ceiling areas, making the Trotec TTW 35000 S a versatile solution for theater ventilation applications on stage or in film and photography.

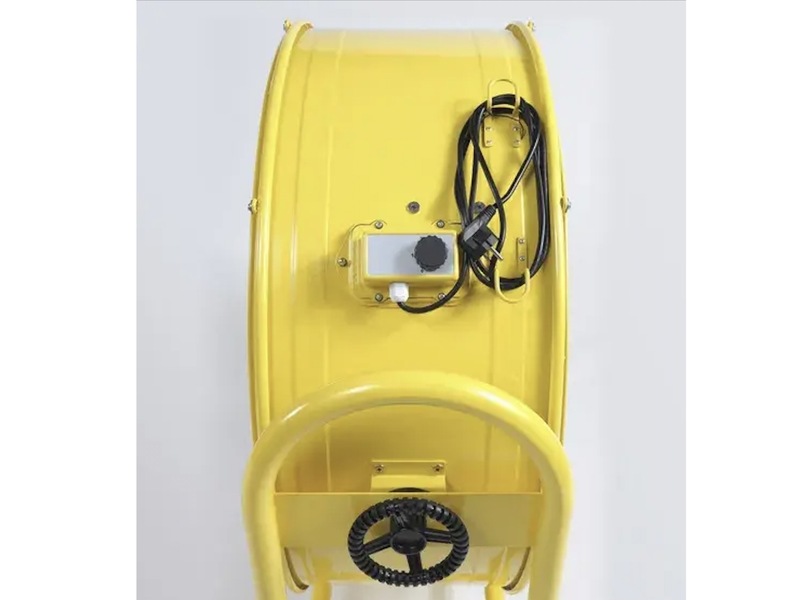

The commissioning of the fan is very easy using the rotary switch, which can be used to set two different ventilation speeds. The device also has a practical cable holder for safe transport of the connecting cable. By loosening the handwheel, the angle of the fan can be adjusted continuously in both directions horizontally to the stop point, and then the desired blow-out position can be locked by turning the handwheel.

Advantages of the device:

• Cost-effective option for semi-professional ventilation applications
• Air circulation capacity up to 32,400 m³ / h
• The plug-in device is easy to handle
• Adjustable angle of flow from horizontal to vertical
• Flexible positioning by truck structure

Features and functions:

• Mobility
• Forklift
• Metal wheels with rubber tires
• Mobile
• Crane
• Plastic transport wheels
• Non-lubricating rubber wheels
• Carrying / transport handle

Device specifications:

• Stage 1 of air volume: 24,600 m³ / h
• Stage 2 air volume: 32,400 m³ / h
• Maximum rotor speed: 850 rpm
• Power level 1: 0.62 kW
• Power level 2: 0.75 kW
• Sound level 1: 65 dB (A)
• Sound level 2: 75 dB (A)
• Electrical connection: 16 A
• Connection voltage: 230 V / 50 Hz
• Plug: CEE 7/7
• Mobility: mobile

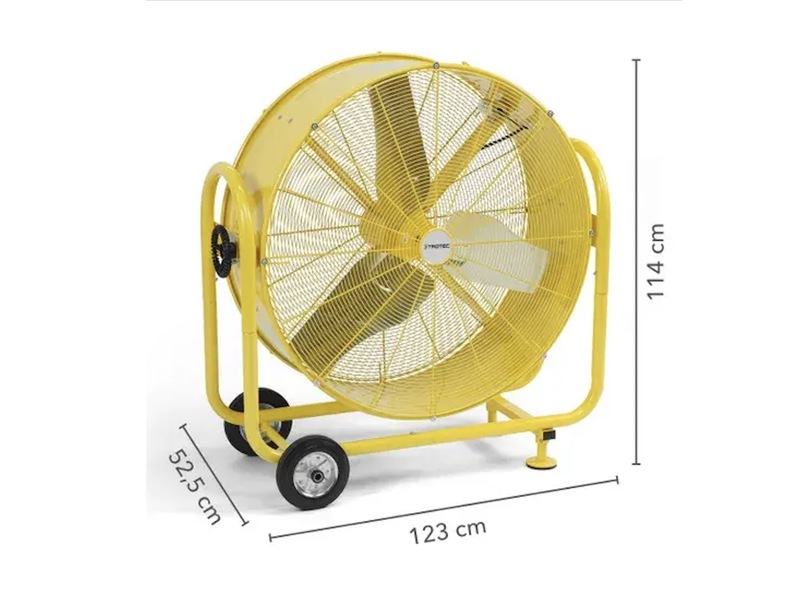

• Dimensions (length x height x width): 1230 x 525 x 1140 mm
• Weight: 49 kg
