Grillhouse Lillevilla Kielo – 12 m² / 40 mm

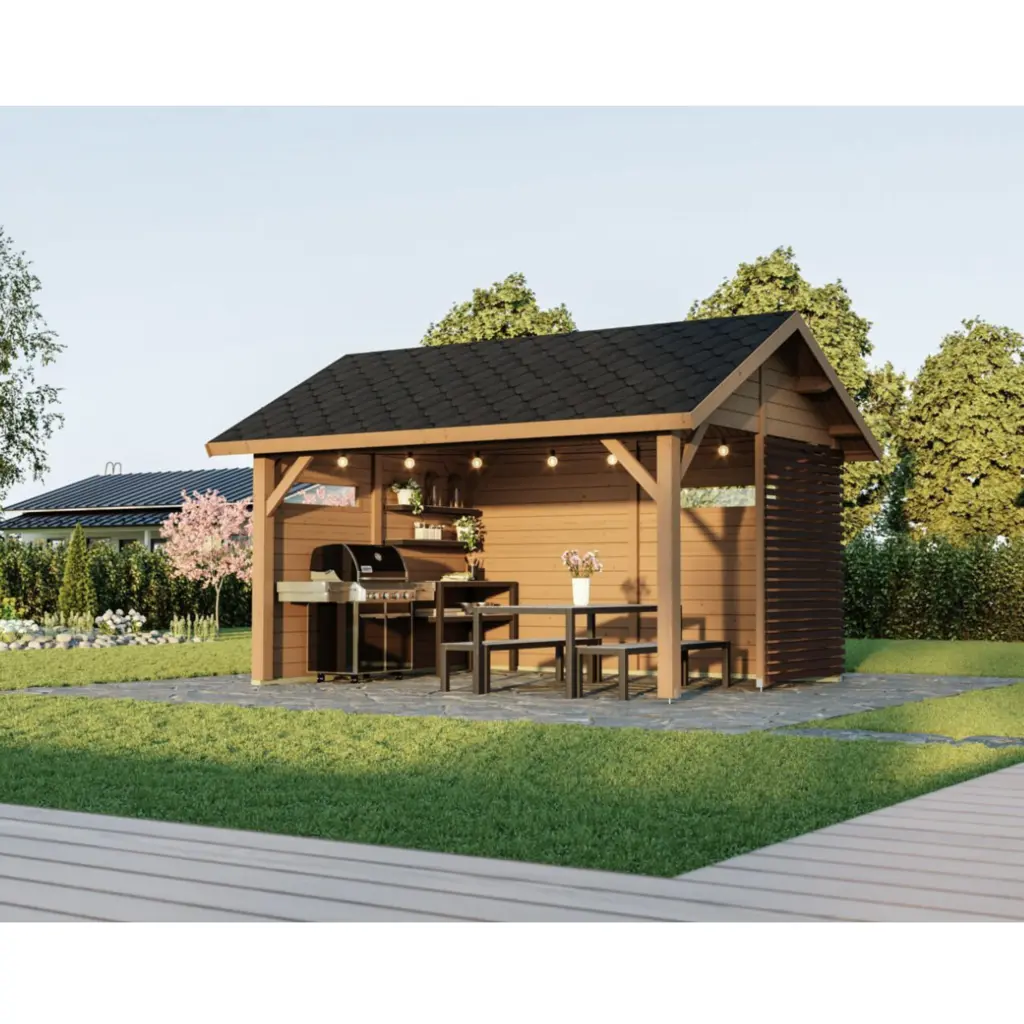

The Much-Awaited Grill Pavilion!

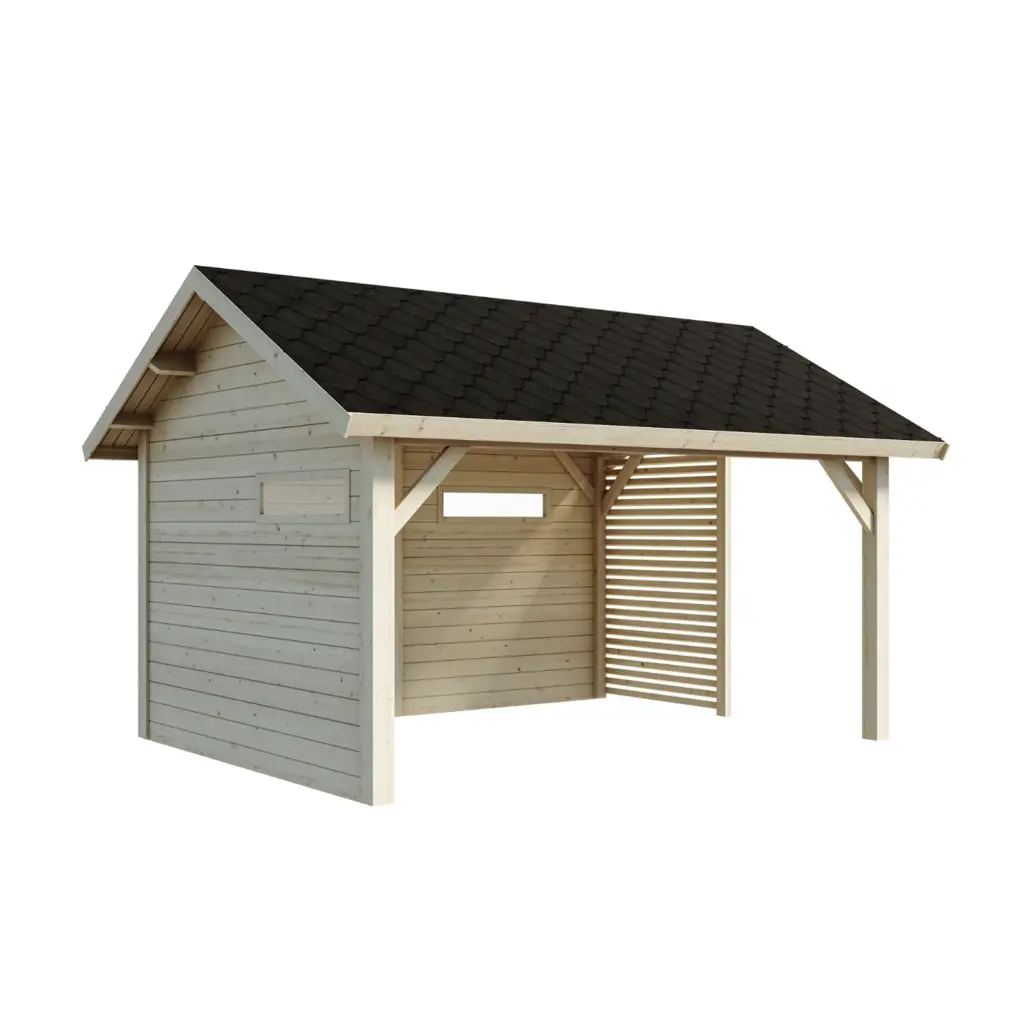

The Lillevilla Kielo grill pavilion provides a sheltered spot for your grill or even a pizza oven. The base size of this model is 4.0 x 3.0 m, or 12 m². The ridge height of the Lillevilla Kielo is approximately 3.1 m, with a free interior height of about 1.92 m. The included windows can be placed on the side walls either upright, horizontally, or left uninstalled. They can also be positioned on the back wall. The log thickness of Lillevilla Kielo is 40 mm.

Delivery Contents

The package includes logs, windows, roofing boards, nails, and screws. Roofing material is not included. You can order either Katepal Classic KL shingles or Katepal TopTite 3 roll roofing (tight-seam roofing) from this page. Tile roofing is not recommended. Roofing material must be installed immediately after assembly.

The parts of the pavilion are pre-processed at the factory. However, since assembly is required, you will need common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.

Surface Treatment

The structure must be treated immediately after assembly, as weather and conditions permit. Use breathable surface treatment materials designed for log surfaces. Paints that create a non-breathable plastic film should not be used.

Building Permits

Check in advance with your local building authority to determine if a building permit is required.

Technical Specifications

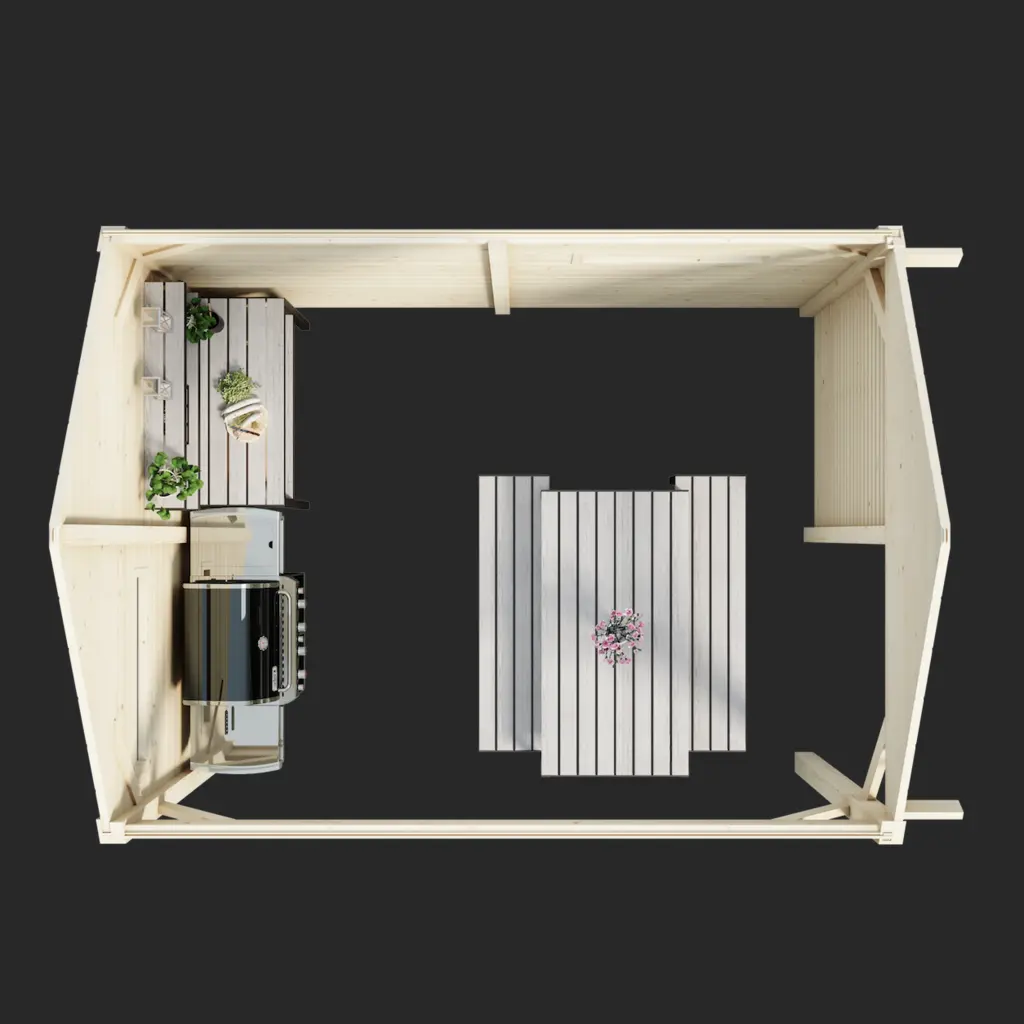

Base Area (m²): 12
Base Dimensions (mm x mm): 4000 x 3000
Wall Thickness (mm): 40
Ridge Height (mm): 3103
Interior Height (mm): 1924
Roof Area (m²): 18.6
Roof Dimensions (mm x mm): 4640 x 3550
Ridge Length (mm): 4600
Slope Length (mm): 2016
Roof Slope (degrees): 28.00
Roof Boards (mm): 16
Floor Boards (mm): Not included
Window: Type L9 (43x292x1090), glass 4 mm, 2 pcs
Window Opening Direction: Fixed
Roofing Material: Not included
Package Dimensions (mm) and Weight
Dimensions: 4650 x 650 x 1150
Weight: 920 kg
Product Code (SKU): 0140 40 30 40

Additionally available:

Roof material

30121 Sealed seam roofing package (+400.50 €)

30128 Roof tiles (+400.50 €)

Eaves Metal Package

30135 Eaves Metal Package (+135 €)

Assembly instructions
