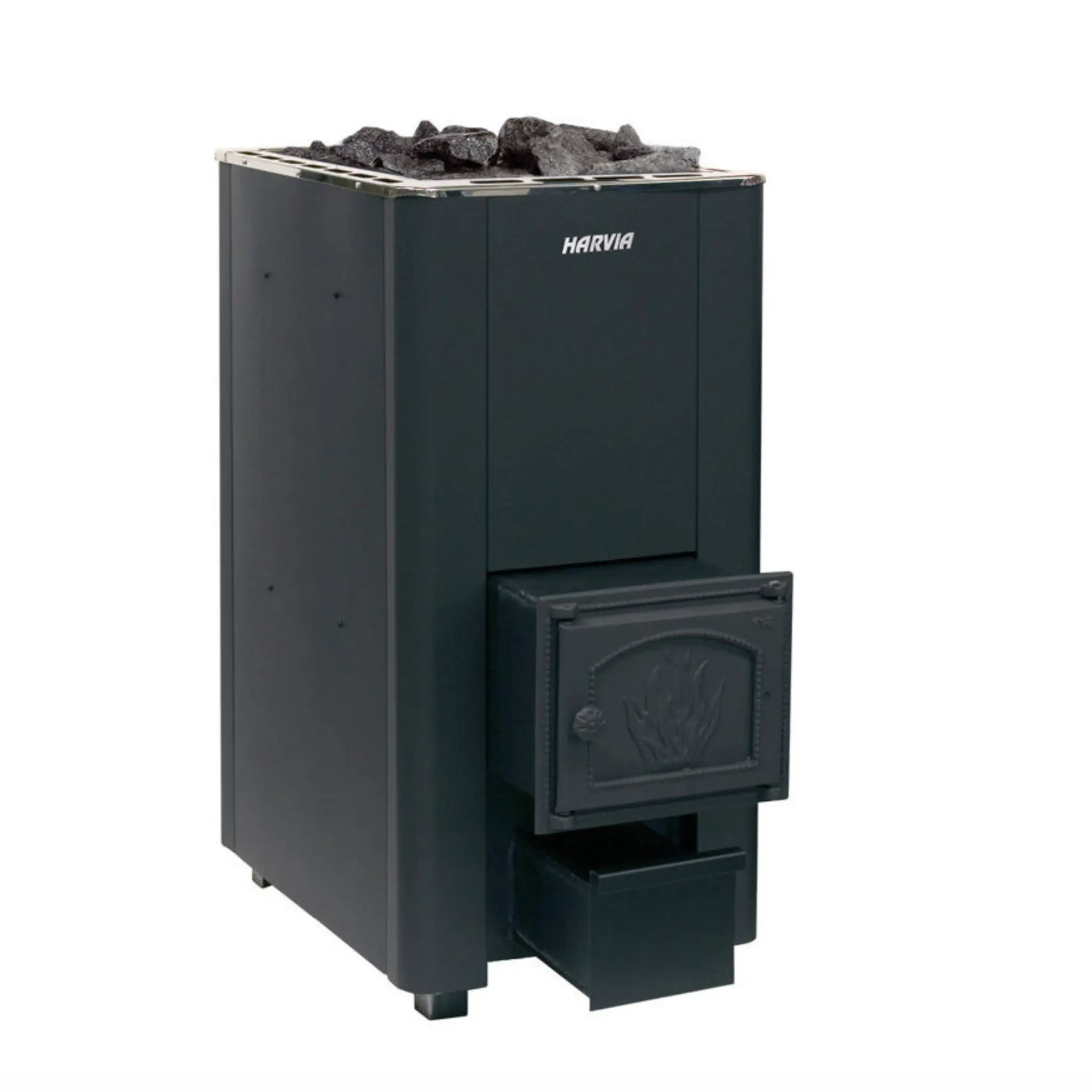

Harvia 50 SL wood burning heater, 20–50 m³

Product code: HARWK500SL

GTIN Code: 6417659001182

The Harvia 50 SL is a high-quality and versatile tunnel heater designed for large saunas and for providing steam to even big groups at once. It is a through-wall heater, installed in the sauna with the firebox door extending into an adjacent room, where it functions as a fireplace—perfect for roasting sausages, for example.

The graphite black Harvia 50 SL wood-burning stove holds a massive amount of stones, ensuring even and consistent steam in spacious sauna rooms. The door hinge can be reversed according to preference. This communal stove is especially well suited for sports centers, camp facilities, and large saunas in service businesses.

Product information:

• Brand: Harvia
• Model: 50
• Warranty: 2 years (covers material and manufacturing defects)

Product dimensions:

• Height (mm): 1050
• Width (mm): 510
• Flue outlet diameter (mm): 140
• Weight (kg): 175

Product features:

• Color: Black
• Material: Steel
• Stove type: Through-wall, large sauna stove
• Water tank included: No
• Depth + firebox extension: 71.5 + 19.5 cm
• Solid door with reversible hinge
• Recommended stone size: Ø 10–15 cm
• Firebox cover thickness: 10 mm
• Maximum log length: 61 cm
• Log diameter: 8–15 cm
• Nominal output: 40 kW
• Required chimney temperature class: T600
• Top flue outlet position (rear edge to center of opening): 580 mm
• Masonry wall installation (B): Leave a 50 mm air gap between the stove and walls. If installed in a wall recess, leave a 100 mm gap
• These are minimum safety distances—refer to the stove’s installation manual for complete details

Also available accessories, ask for more!

Note: Stones are not included in standard delivery (available separately)

Installation into concrete or brick wall opening:

• Minimum opening width: 350 mm
• Minimum opening height (from floor): 615 mm
• Maximum wall thickness: 150 mm
• See the user manual for full installation instructions

Technical specifications:

• Maximum stone capacity (kg): 120

Installation and usage:

• Minimum sauna volume (m³): 20
• Maximum sauna volume (m³): 50
• Safety distance to ceiling (mm): 1200
• Safety distance to side (mm): 500
• Flue connection location: Top

Package dimensions and weight:

• Package width (mm): 800
• Package height (mm): 1240
• Package depth (mm): 1200
• Shipping weight (kg): 206.5

Installation instructions
