Harvia Xenio control panel CX110

From the modern Harvia Xenio digital control panel, the driver can control electric and Combi heaters or infrared radiators. This control panel has a convenient user interface, and thanks to its rather small dimensions, it can be placed on the surface in various rooms, such as a sauna, a laundry room, a wardrobe and even a living room. You can see from the control panel when the sauna has enough fuel and is ready for use.
The Harvia Xenio CX110 control center is responsible for an electric sauna heater with a power of 2.3–11 kW.

The set includes:

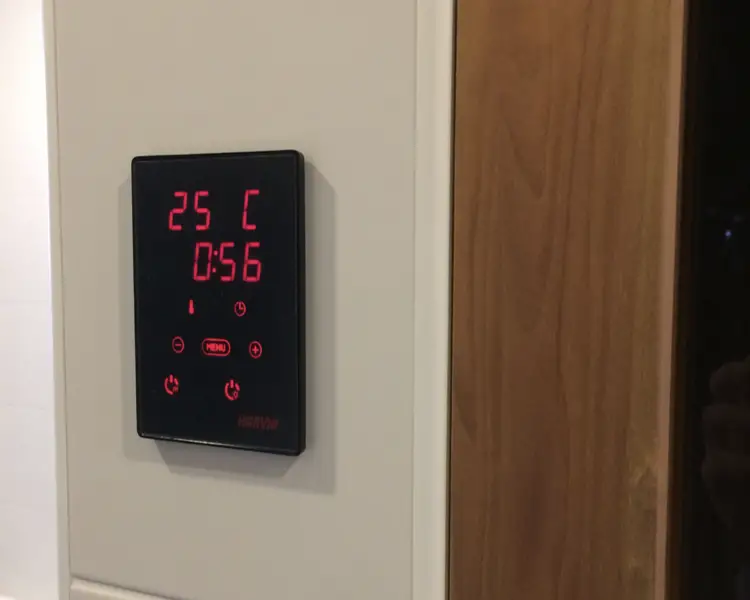

• Control panel
• Temperature control range: 40-110 °C.
• Working time regulation area: family saunas 1–6 h, public saunas in apartment buildings 1–12 h.
• Pre-tuning time adjustment range: 0-12 h.
• Lighting control.
• The control panel can be attached to the wall or, if desired, also sunk into the wall
• Dimensions: 85mm x 24mm x 110mm

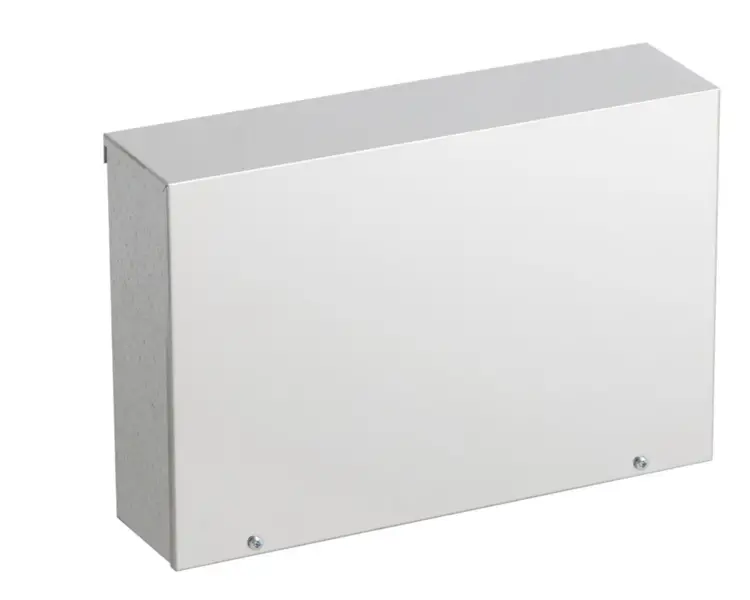

Contactor box

• Supply voltage: 400 V 3-phase
• Load: max. 11 kW
• Lighting control, max. power: 100 W, 230 V single phase
• Dimensions: 272mm x 70mm x 193mm

Temperature sensor with 4 meter cable

• The temperature sensor is equipped with a resettable overheating protection and a temperature-measuring NTC thermistor (22 kΩ/T=25 °C).
• Weight: 175 g with cables (approx. 4 m)
• Dimensions: 51mm x 73mm x 27mm

Data cable 5 m (optional 10 m extension cables available, max. total length 30 m)
