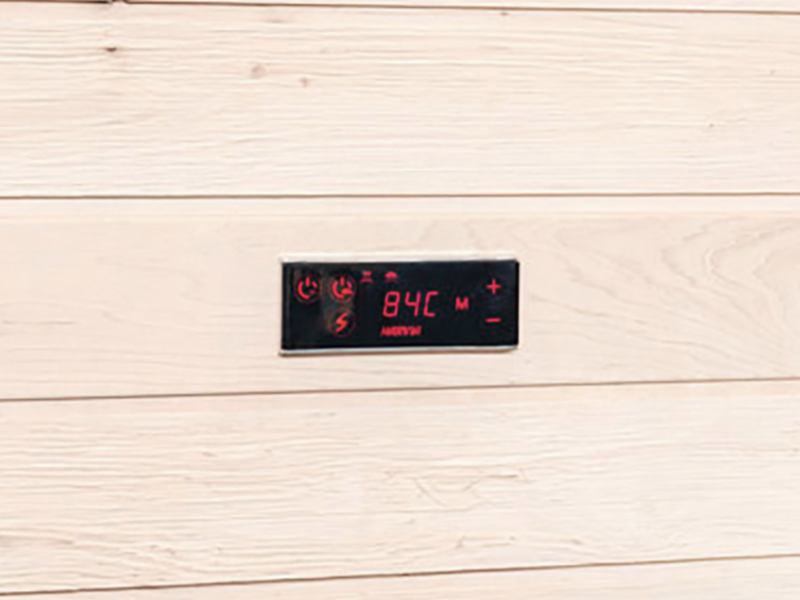

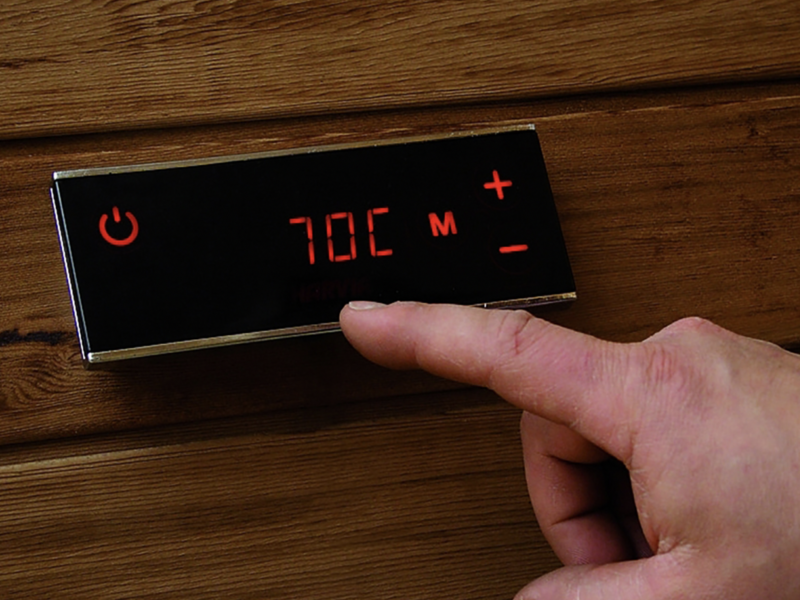

HARVIA XAFIR CS170

Remote control of electric heaters. The set includes a touch control panel and a power supply.

• Operating temperature between 40 and + 110 °C, accuracy 1 °C.
• Adjustable duration from 1 to 12 hours.
• Adjustable switch-on delay from 1 to 12 hours.
• Sauna drying mode.
• Lighting and ventilation buttons.
• Display of selected and actual temperature.
• Display of selected and remaining working time.
• Display of selected and remaining switch-on delay time.
• Self-check and fault signal.
• Option to switch an additional humidity sensor.
• Use – for electric heaters
• Switching power – 17 kW

Technical data:

• Dimensions: width (mm) 270
• Dimensions: height (mm) 50
• Dimensions: depth (mm) 30
• Weight, (kg) 1.8
• Adjustable temperature, min.-max. (°C) 40 – 110
• Heater power, max. (kW) 11
• Heating time, (h) 12
• Setting the switch-on time, (h) 0 – 12
• Maximum reading, (°C) 110
• Comes with –
• Additional information 400V 3N
