Name: HUUM UKU Local Main Module – No Control Panel
SKU: 4744103013104
Price: 284.80 EUR
Availability: InStock

HUUM UKU Local main module (without control panel)

0.0

UKU Local sauna main module makes sauna heating easy and comfortable. UKU comes with several safety and extra features for a pleasant sauna experience. It can be used with different manufacturers’ heaters.

Tnot inc. VAT.

€284.80€389.00

Amount

UKU Local main module is perfect if you prefer to heat your sauna on the spot or don’t have a network connection in your location. With the stylish control panel on the wall, you can easily adjust the temperature, heating time, and more.

You can also connect the sauna lighting, ventilation, and steamer to the control system for added convenience. Overheating protection and a child lock take care of the safety of your sauna. If you change your mind and want to control the sauna from the app, you can simply add Wi-Fi capability later.

Controller:

Temperatures 40-110 ºC
For heaters up to 18 kW
Supply voltage 400 V 3N; 230 V 1N
Heating period 3h; 8h; 12h
EAN: 4744103013104

Key features:

Suitable for electric heaters up to 18 kW
Compatible with different manufacturers’ heaters
Target temperature between 40-110 °C
Timer for setting heating start time and duration
Connectable to lights/ventilation and steamer
Overheating protection
Child safety lock
Door sensor
Selection of stylish control panels
Controllable from the control panel on the wall

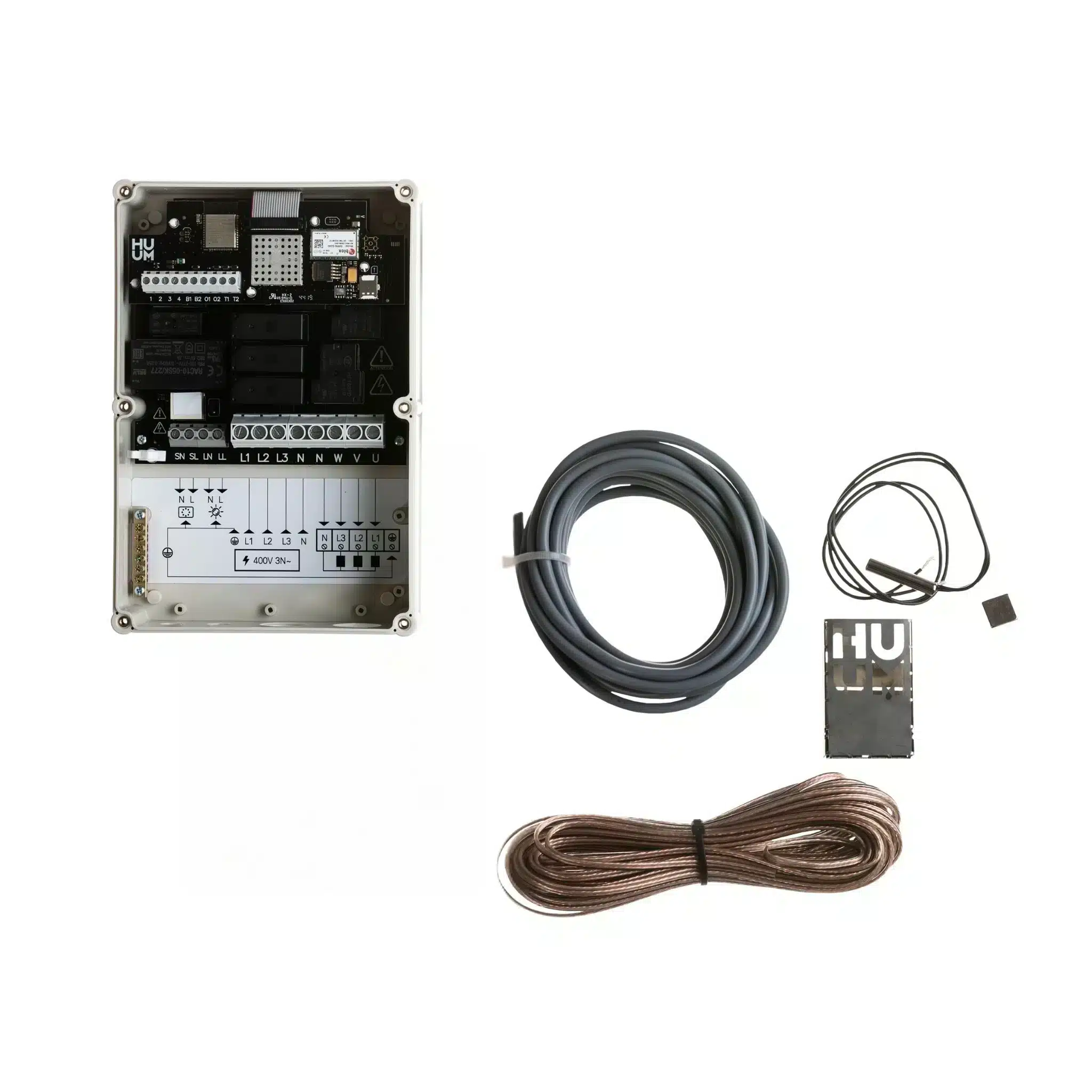

The set includes:

Control console cable (3 m; 4 x 0,34 mm² )

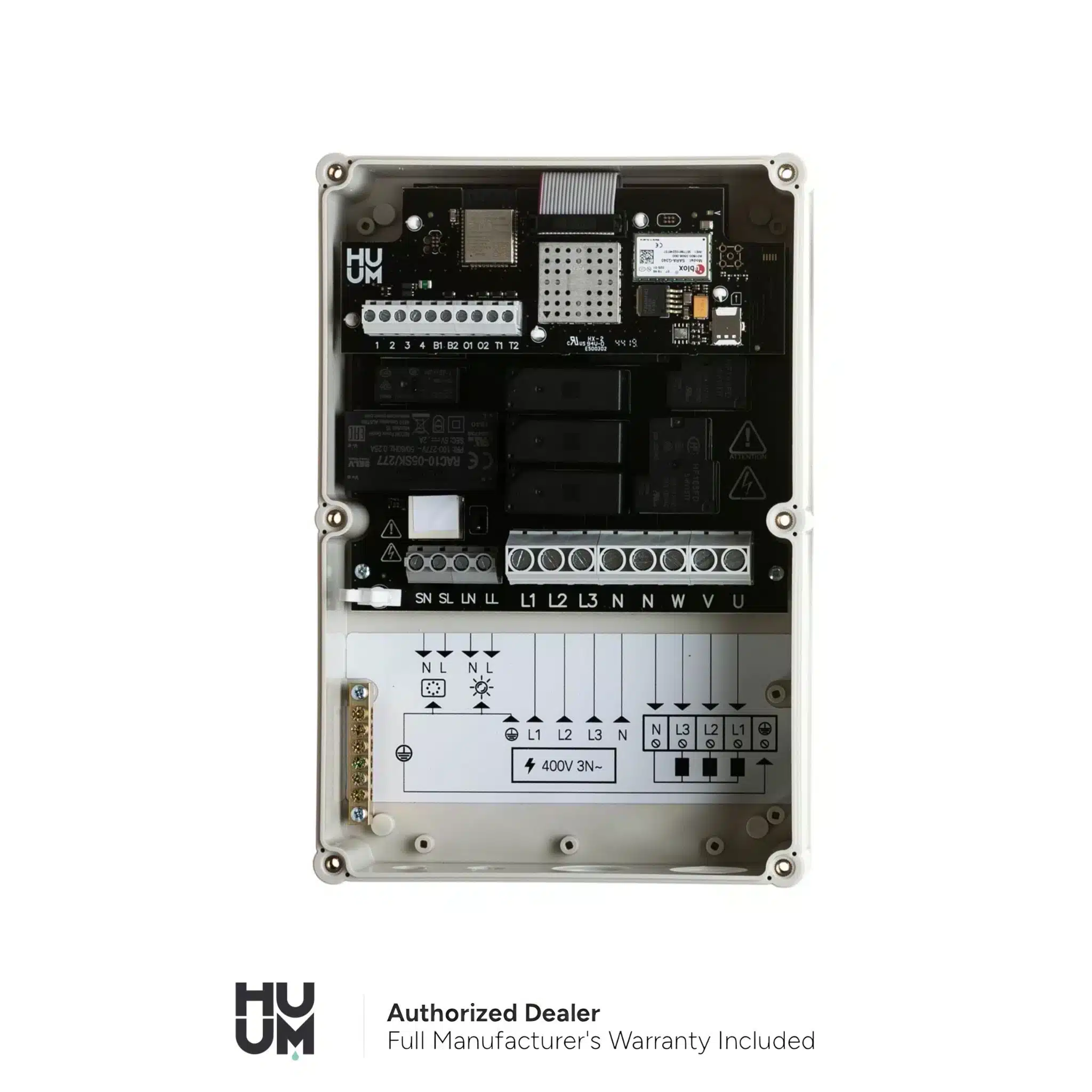

Main module (142 x 90 x 58 mm)
Temperature sensor
Door sensor
Temperature/door sensor cable (5 + 5m; 2 x 0,22 mm²)

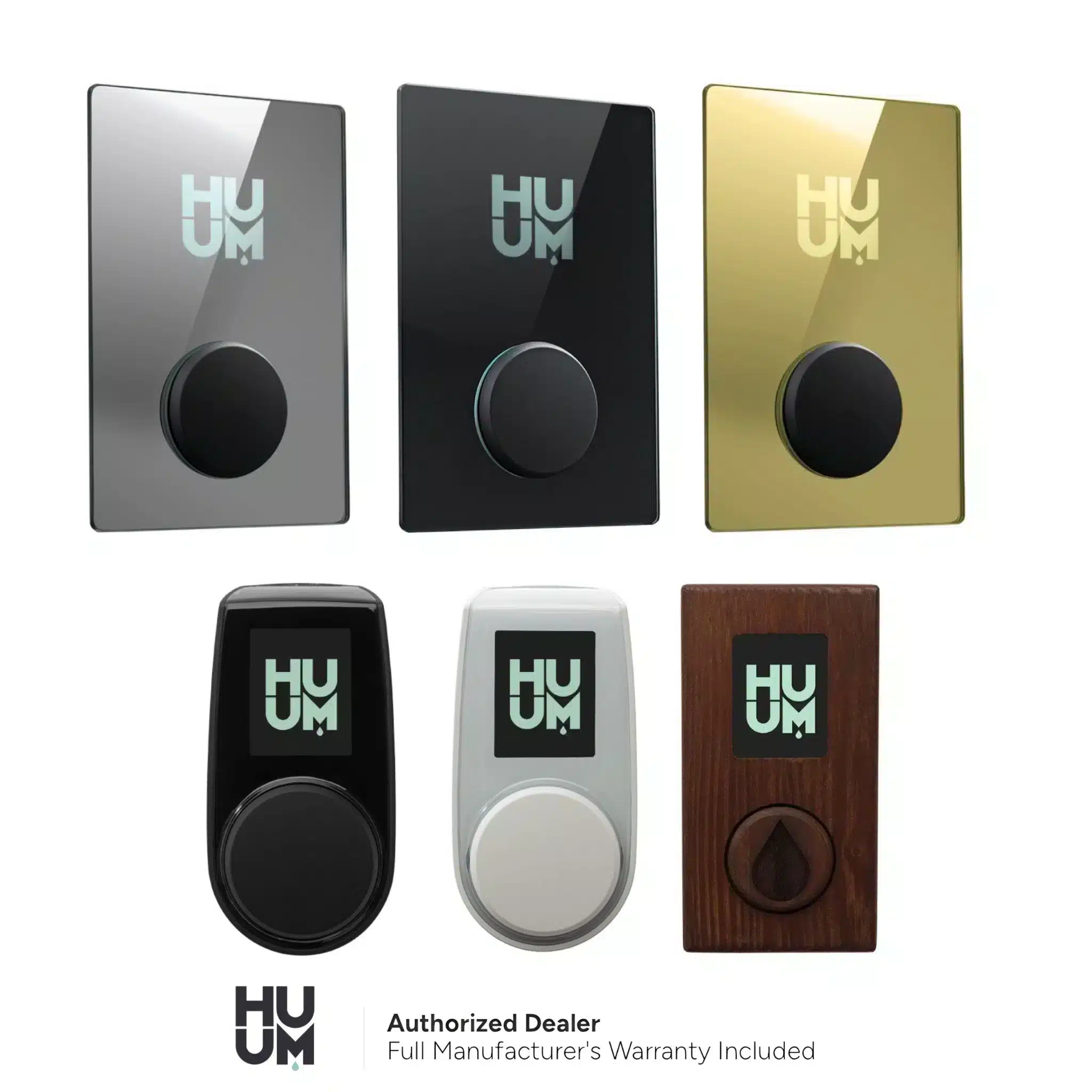

NB! This sauna main module is sold as a set without the control panel, giving you the flexibility to choose a panel that suits your style. Panels are available separately in a range of premium options: classic black (plastic), classic white (plastic), wood, glass black, glass mirror, or glass gold.

The main module is primarily designed for recessed installation, before installation makes a recess in the wall with dimensions of 65 x 105 mm to the desired place. HUUM has also developed a framework that allows the control panel to be mounted on the surface – find the surface frame HERE.

Manual
