Name: Industrial fan TTV 7000 | Factory Sale
Availability: InStock

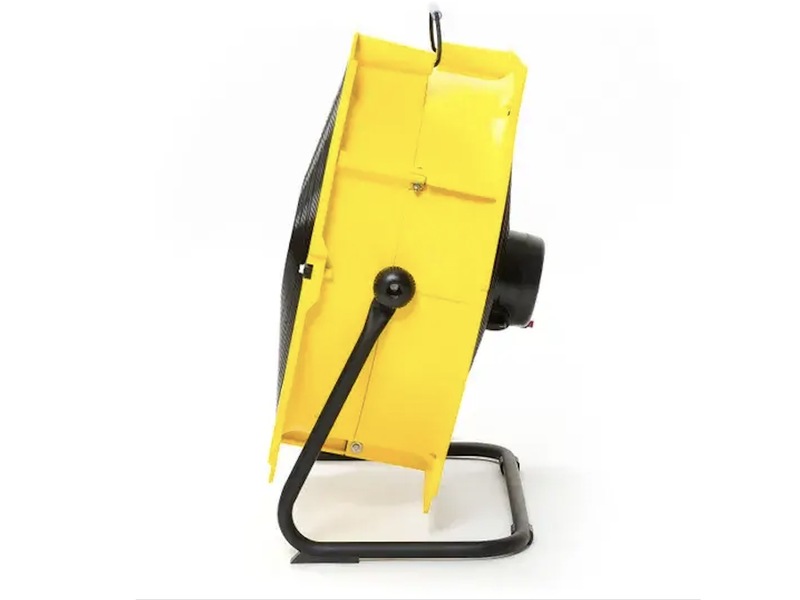

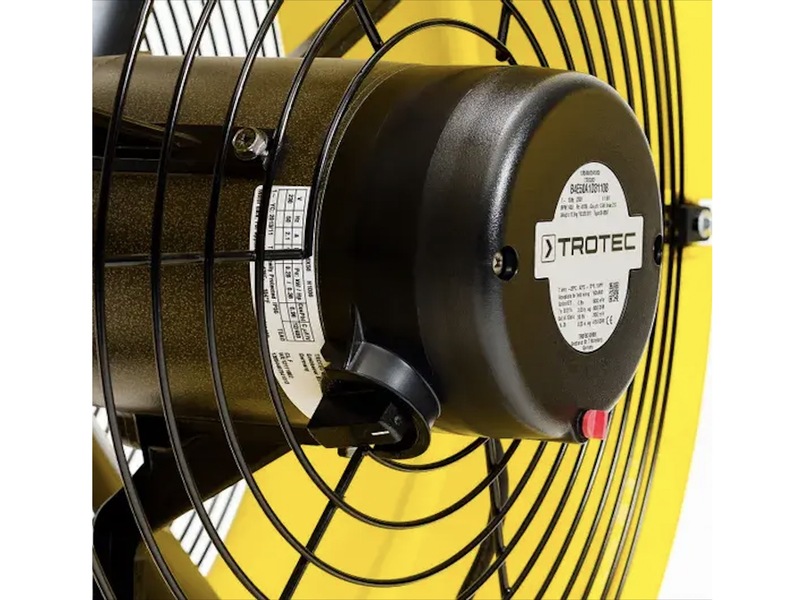

Industrial fan TTV 7000

0.0

The Trotec TTV 7000 fan with an airflow speed of up to 8,500 m³ / h on three levels and an impressive 65-meter discharge distance indoors ensures high air exchange even in high-volume environments.

Tnot inc. VAT.

€0.00

Amount

Tens of thousands of machine renters, construction contractors, renovation service providers and craftsmen use Trotec TTV equipment every day and have made these professional fans the best-selling series of mobile axial fans in construction.

This high-performance fan is the first choice for all ventilation tasks in production and storage rooms or on farms where a large amount of air needs to be circulated.

With its three-stage air power, which can be increased up to 8500 m³ / h, and an impressive 65-meter indoor radius, the Trotec TTV 7000 industrial fan ensures high air exchange even in high-volume environments. Perfect prerequisites for additional circulation of dry air in warehouses.

With the help of a suitable hose adapter and several connected fan hoses, the Trotec TTV 7000 fan transmits large volumes of air without difficulty over very long distances.

The high-performance fan is specially designed to meet even the most demanding practical requirements in harsh conditions, with long service life and reliability even in material-changing areas, which is not only suitable for industry, construction or trade, but is also the ideal solution for any machine rental company!

Advantages of the device:

Powerful axial fan – built to high industry standards
Extremely durable for professional continuous use even in the most difficult conditions
TTV platform concept: thanks to flexible system accessories, you only need one basic device for many applications
The advantage of the TTV platform: lower investment and maintenance costs, more efficient storage, more flexibility
Splashproof (IP55)
It can be stacked to save space for transport and storage
Suitable hose adapter available: optional mounting allows connection to an air transport hose or dust bag to the TTV 7000 fan, eg for suction of dirt particles.

Features and functions:

Mobility
Carrying / transport handle
Stackable
Portable
Plastic transport wheels
Metal wheels with rubber tires
Non-lubricating rubber tires
Crane
Forklift

Additional information:

Air volume
	Max [m³/h]	8500
Air flow
	outburst
	input
Fan
	Axial
	Radial	–
	Fan steps	3
Air discharge rate
	m/s	11
	km/h	39.6
Ejection distance
	Out [m]	20
	In [m]	65
Air pressure
	Max [Pa]	100
Temperature
	Max [°C]	45
Electrical indicators
	Power connection	230V/50Hz
	Rated current consumption [A]	1.8
	Energy consumption [kW]	0,41
	Protection [A]	10
Electrical connection
	Plug	CEE 7/7
	Cable length[m]	3

	IP safety glass	55
Sound level
	Distance 3 m [dB(A)]	58
Hose connection
	Diameter [mm]	560

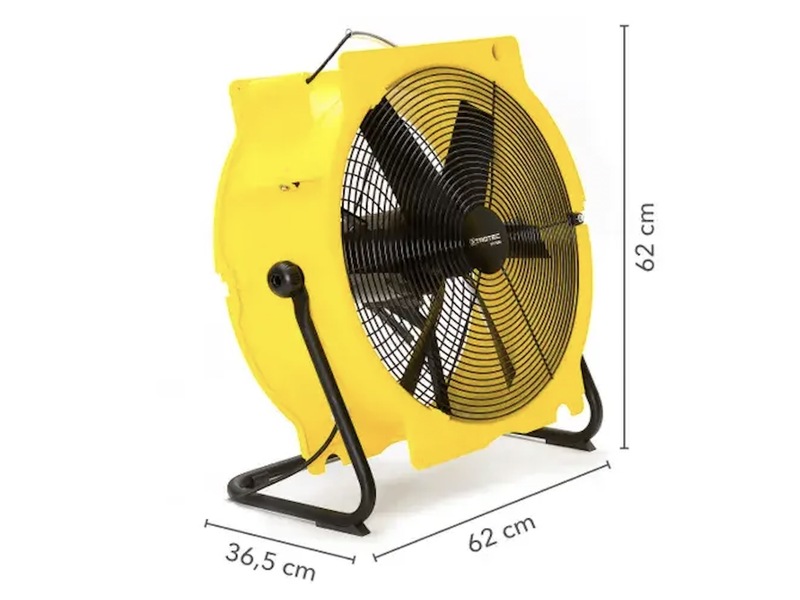

Dimensions
	Length [mm]	365
	Width [mm]	620
	Height (ilma pakendita) [mm]	620
Weight
	(without packaging) [kg]	18.5
