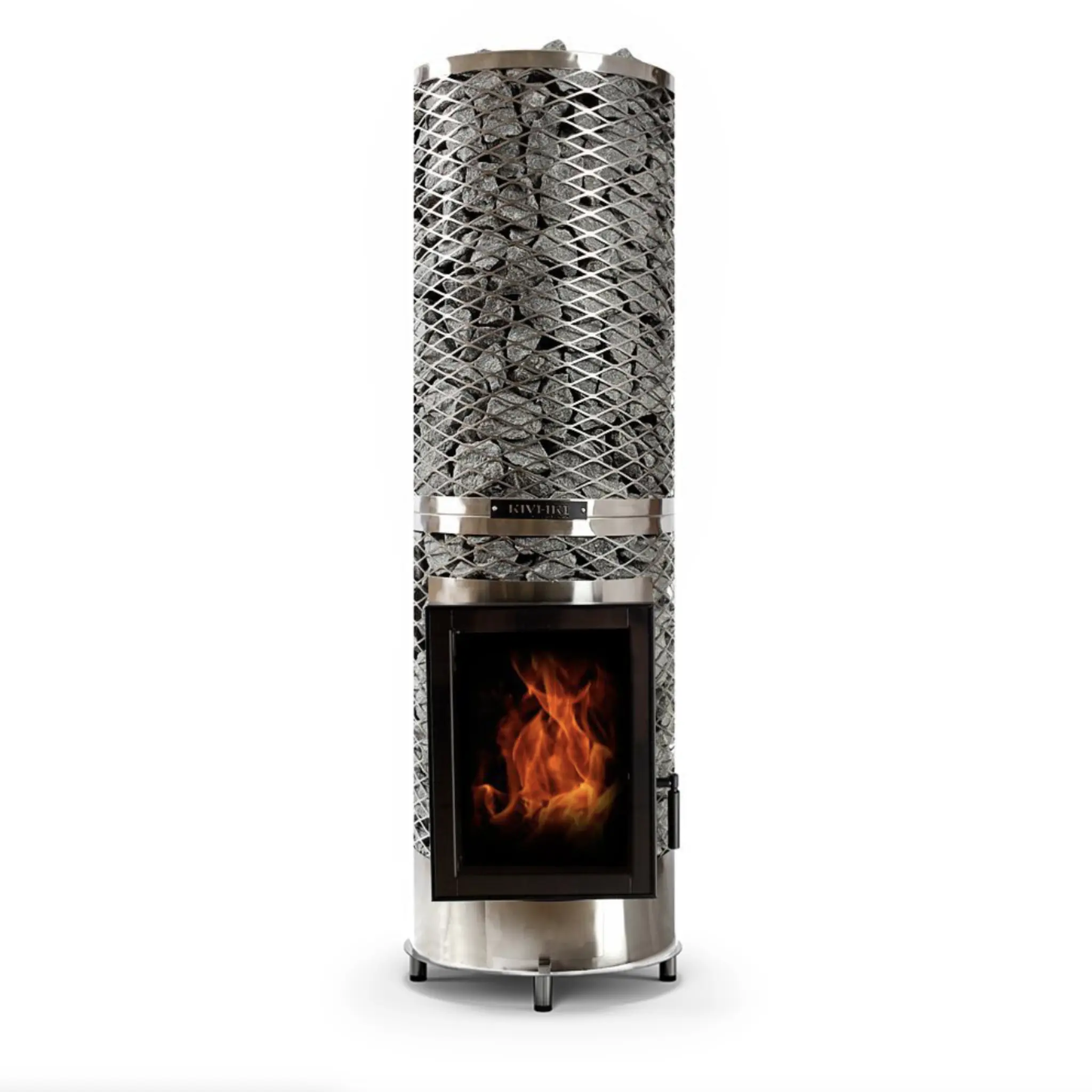

Kivi-IKI wood burning stove, 15–30 m³

Product code: NETKIVIIKI

GTIN Code: 6430041121688

KIVI-IKI was first introduced at the 2009 Habitare Fair. The stove’s large glass surface brings the captivating movement of fire directly into the sauna, challenging traditional stove design.

Thanks to its transparency, KIVI-IKI also functions as a light source, adding natural glow and ambiance to the sauna space. The stove is made from the same durable materials used in other IKI-Kiuas wood-burning models. It is delivered with a base, which is permanently bolted to the unit.

The safety distances to combustible materials are: 25 cm on the sides, 25 cm at the rear, and 80 cm above.
Note: From an uninsulated/exposed chimney pipe, the safety distance must be 100 cm upwards and 50 cm to the sides. The distance from the firebox collar to the side must be at least 30 cm.

The stove can be connected to the flue in several ways:

• Option 1: From the top of the stove, directly upward with a straight pipe
• Option 2: From the top of the stove, with a 90° pipe to the wall
• Option 3: From the top of the stove, with a 45° pipe to the wall
• Option 4: Through the stove’s mesh body, with a straight pipe to the wall

Product information:

• Brand: IKI Kiuas
• Model: Kivi-IKI

Product dimensions:

• Height (mm): 1510
• Width (mm): 480
• Depth (mm): 480
• Diameter (mm): 480
• Weight (kg): 85

Product features:

• Color: Steel
• Material: Steel
• Stove type: Cage-style heater
• Water tank included: No
• Glass door height: 47.5 cm
• Glass door width: 36 cm
• Door handle made of wood; reversible hinge
• Heat output to room: 15.9 kW
• Maximum stone capacity (kg): 260

Installation and usage:

• Minimum sauna volume (m³): 15
• Maximum sauna volume (m³): 30
• Safety distance to ceiling (mm): 800
• Safety distance to side (mm): 250
• Safety distance to rear (mm): 250
• Flue connection location: Top, Rear

Note: Sauna stones are not included with the stove and must be purchased separately.
