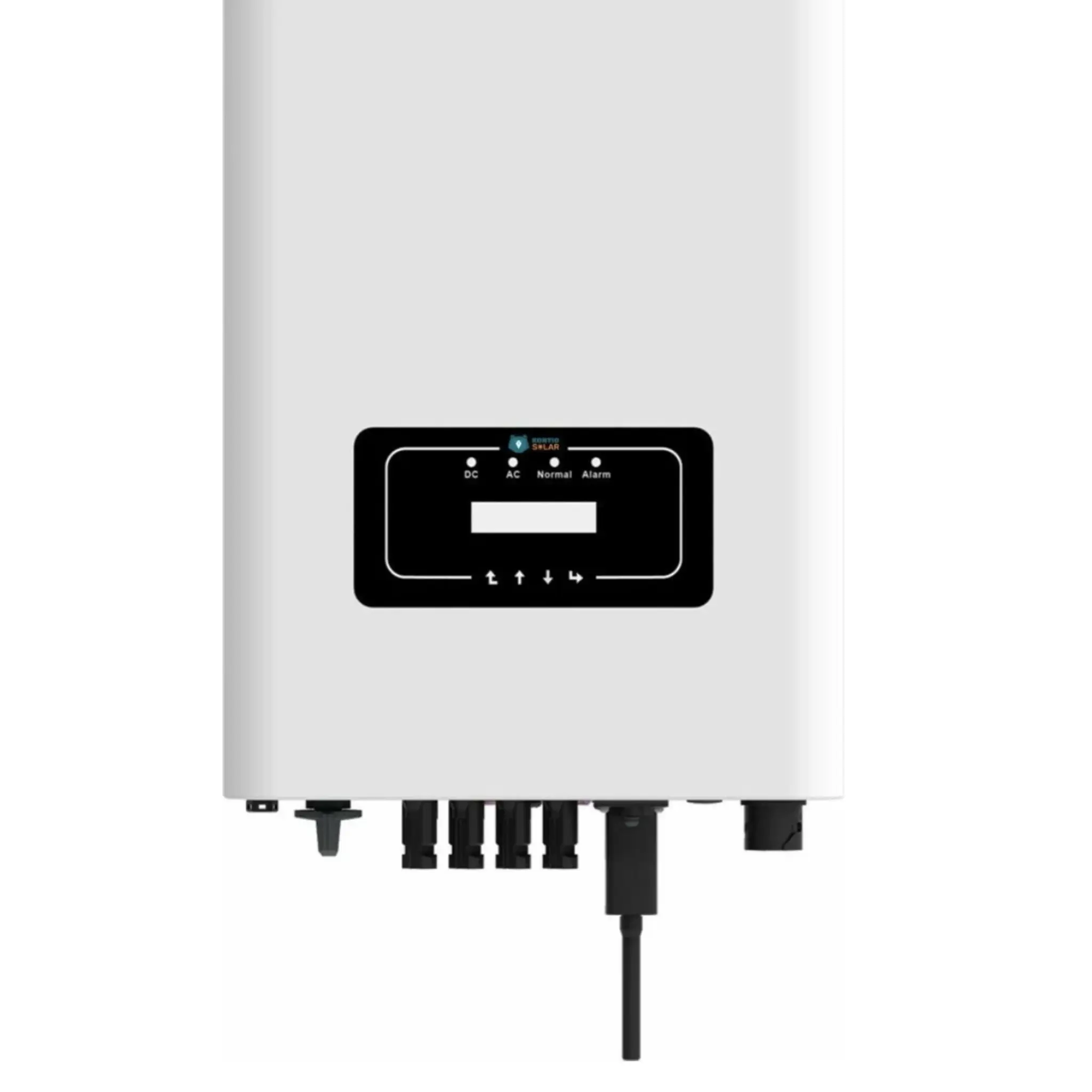

Kontio Solar Inverter, 15kW, 3-phase, 380V, 50Hz

Product code: KON-KS00015

TOP-CLASS TECHNOLOGY

The Kontio Solar On-Grid inverter offers an efficiency of over 99%. It reliably converts direct current (DC) from solar panels into alternating current (AC), ready for grid feed-in. This high-quality inverter boosts voltage to 400 volts in 3 phases, ensuring efficient and stable energy production.

BEST CHOICE FOR 3-PHASE SYSTEMS

The Kontio Solar 15 kW inverter provides a clear advantage in 3-phase systems. Unlike single-phase alternatives, the three-phase inverter ensures optimal power distribution, enabling efficient electricity use with minimal losses.

COMPATIBLE WITH MORE PANELS

Looking to maximize your investment? The Kontio Solar 15 kW inverter can be connected to up to 40 solar panels. With a maximum input power of 19.5 kW and an active AC output power of 16.5 kW, it ensures high-efficiency energy production.

EASY CONTROL WITH WIFI CONNECTIVITY

Monitor and manage your inverter effortlessly by connecting via WiFi. Track your energy production and optimize system performance anytime, anywhere.

Product specifications:

• Maximum DC Input Power: 19.5 kW
• Maximum DC Input Voltage: 1000 V
• Startup DC Input Voltage: 250 V
• MPPT Operating Voltage Range: 200-850 V
• Maximum DC Input Current: 13 + 26 A
• Maximum Short Circuit Current: 19.5 + 39 A
• Number of MPPT Trackers: 2
• Strings per MPPT Tracker: 1 + 2
• Nominal Output Power: 15 kW
• Maximum Active Power: 16.5 kW
• Nominal Output Voltage/Range: 3L/N/PE 220/380V, 230/400V
• Nominal Grid Frequency: 50/60 Hz (optional)
• Operating Phase: Three-phase
• Nominal AC Output Current: 22.7/21.7 A
• Maximum AC Output Current: 25/23.9 A
• Power Factor: 0.8 (leading to 0.8 lag)
• Grid Current THD: <3%
• DC Injection Current: <0.5%
• Grid Frequency Range: 4555 or 5565 Hz (optional)
• Maximum Efficiency: 98.5%
• European Efficiency: 97.5%
• MPPT Efficiency: >99%
• DC reverse polarity protection
• AC short circuit protection
• AC output overcurrent protection
• Output overvoltage protection
• Insulation resistance monitoring
• Ground fault monitoring
• Anti-islanding protection
• Temperature protection
• Integrated DC switch
• Remote software updates
• Remote parameter modification
• Surge Protection: DC Type 2 / AC Type 2
• Brand: Kontio Solar
• Country of Manufacture: China
• GTIN Code: 6438431035522
• Height: 185 mm
• Width: 457 mm
• Depth: 330 mm
• Weight: 15 kg
• Color: White
• Topology: Transformerless
• Internal Consumption: <1W (night)
• Operating Temperature: -25°C to +65°C
• Noise Level: ≤40 dB
• Cooling Concept: Intelligent cooling
• Maximum Operating Altitude: 4000 m
• Grid Connection Standards: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI021, EN50549-1, G98, G99,
• C10-11, UNE217002, NBR16149/NBR16150
• Environmental Humidity: 0-100%
• Safety & EMC Standards: IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2
• MC-4 Compatible
• IP65 Rated Plug
• Display: LCD1602
• Interfaces: RS485 / RS232 / WiFi / LAN

Packaging dimensions and weight:

• Packaging Width: 457 mm
• Packaging Height: 185 mm
• Packaging Depth: 330 mm
• Shipping Weight: 15 kg
