Lillevilla Sauna Tulilampi 10,3 m² / 44mm

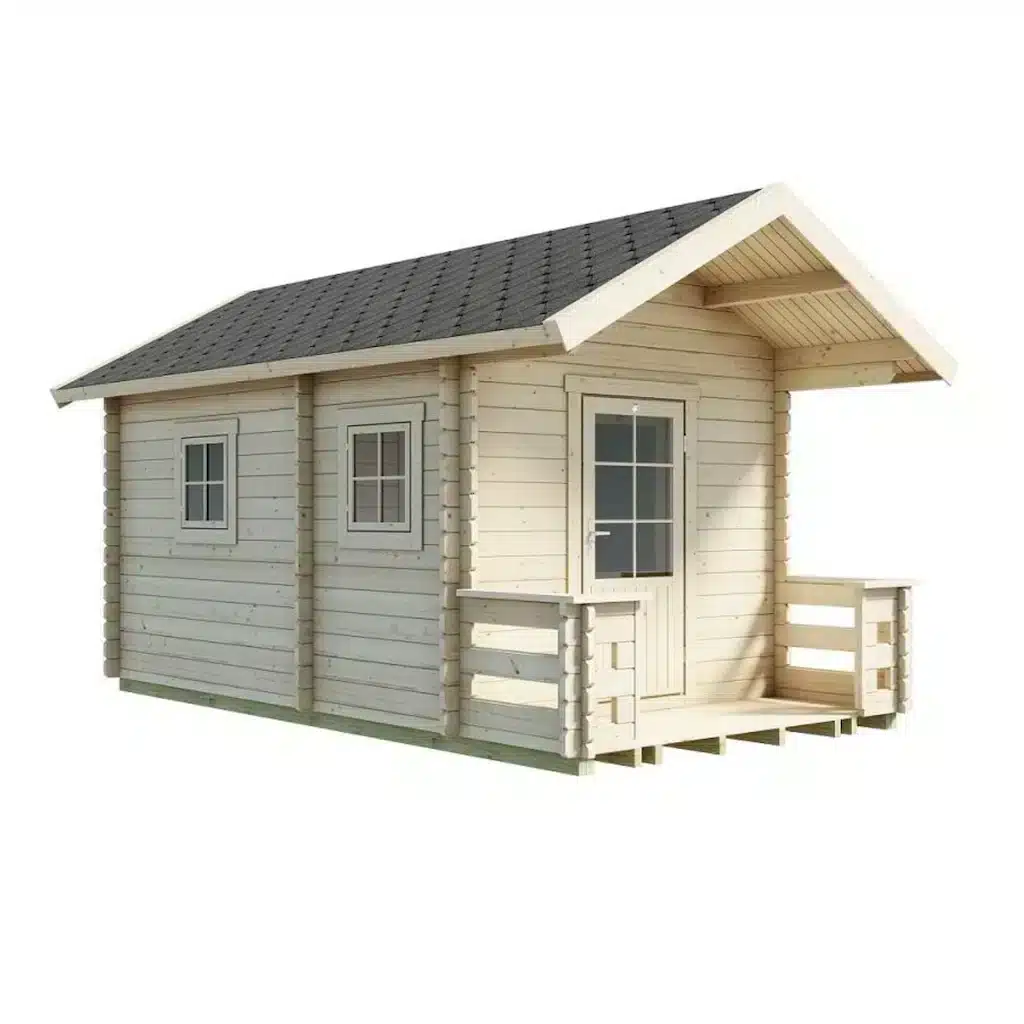

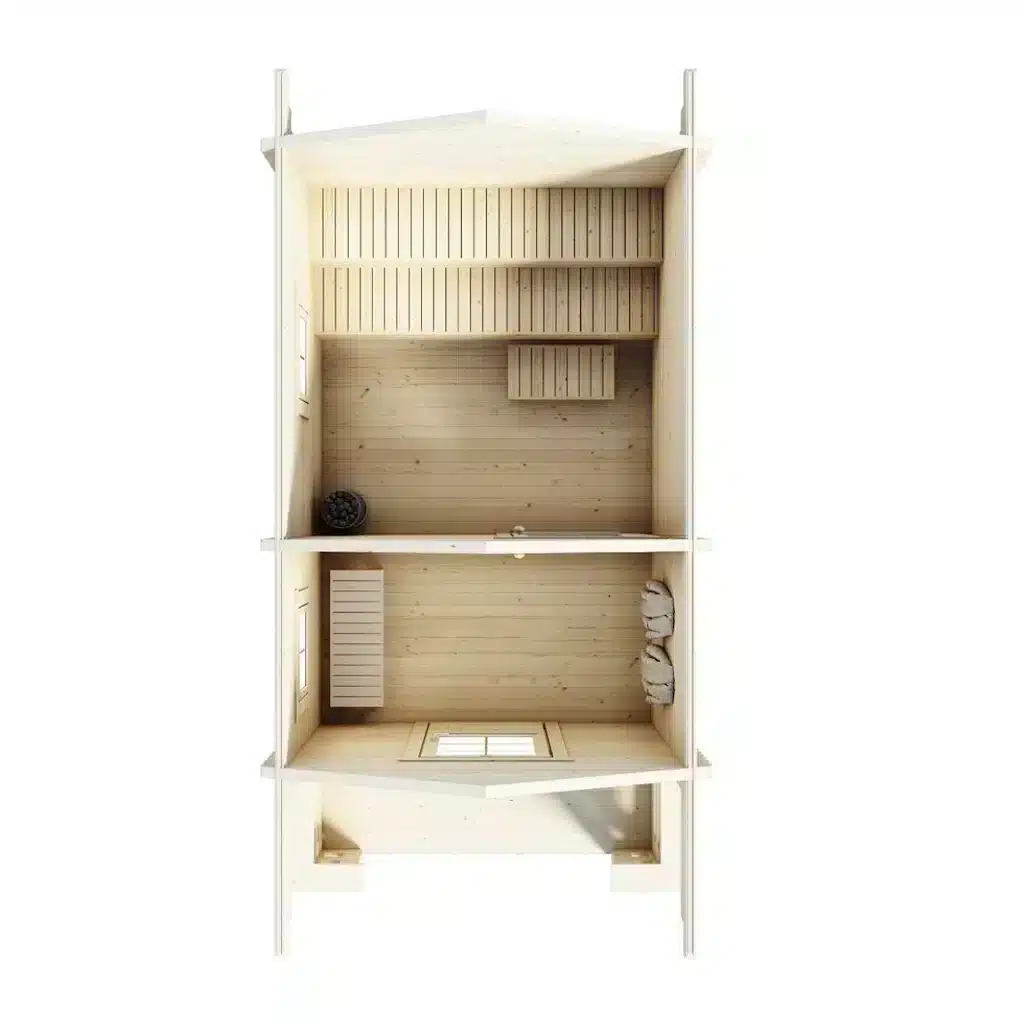

Order the best sauna experience for yourself here! The Lillevilla Sauna Tulilampi model features a separate dressing room and a sauna room. The floor area of this model is 10.3 square meters, with an additional 2.34 square meters of terrace space. The sauna has a width of 2.6 meters and a depth of 3.95 meters. The ridge height of this model is 3.02 meters, and the wall thickness is 44 mm.

Included in the Delivery

The product package includes logs, a door, a window, floor and roof boards, fittings, nails, and screws. Additionally, threaded rods for corner assembly are included. The thickness of the floorboards is 21 mm.

Roofing material is not included in the delivery. We do not recommend tile or shingle roofing. The roofing material must be installed immediately after constructing the building.

Benches are not included in the delivery, but a bench package can be ordered for the sauna from this page.

Note: The heater and chimney are not included in the delivery.

The parts of the cabin are pre-processed at the factory. However, since assembly is required, you should have standard tools like a measuring tape, spirit level, hammer, saw, screwdriver, and drill on hand. We have compiled assembly tips for our products here.

Surface treatment

The surface treatment of the building must be done immediately after assembly, weather permitting. Use breathable surface treatment products designed for log surfaces. Paints forming non-breathable plastic films are not allowed.

Building permit information

Check the need for a building permit in advance with your local building permit authority. The drawings required for the permit application can be downloaded from this page or requested from our customer service.

Technical specifications:

Floor area (m²): 10.3
Base dimensions (mm x mm): 2600 x 3950
Wall thickness (mm): 44
Ridge height (mm): 3020
Sidewall height (mm): 2230
Roof area (m²): 19.5
Roof dimensions (mm x mm): 3230 x 5480
Ridge length (mm): 5450
Roof slope (degrees): 28.00
Roof boards (mm): 16
Floorboards (mm): 21, Terrace boards 20 mm
Windows: Insulated safety glass CE 4/6/4mm, Type A (640×640) x 2
Doors: Insulated safety glass CE 4/6/4mm, Type C10 (897×1820), Safety glass, CE 4mm, Type O3 (648×1772)
Roofing material: Not included
Terrace area (m²): 2.34
Terrace depth: 900 mm
Terrace width: 2600 mm
Package dimensions (mm) and weight: 5500 x 670 x 1150 / 1111 kg
Product code (SKU): 0144 26 395 00

Additionally available:

30136 Eaves Flashing Package (+135 €)

30038 Floor Insulation Package (+243 €)

30037 Roof Insulation Package (+684 €)

9870 Bench Package – 2535 mm (+441 €)

9878 Floor Drain (+99 €)

Assembly instructions

Foundation instructions

Drawings for permit application

Surface treatment
