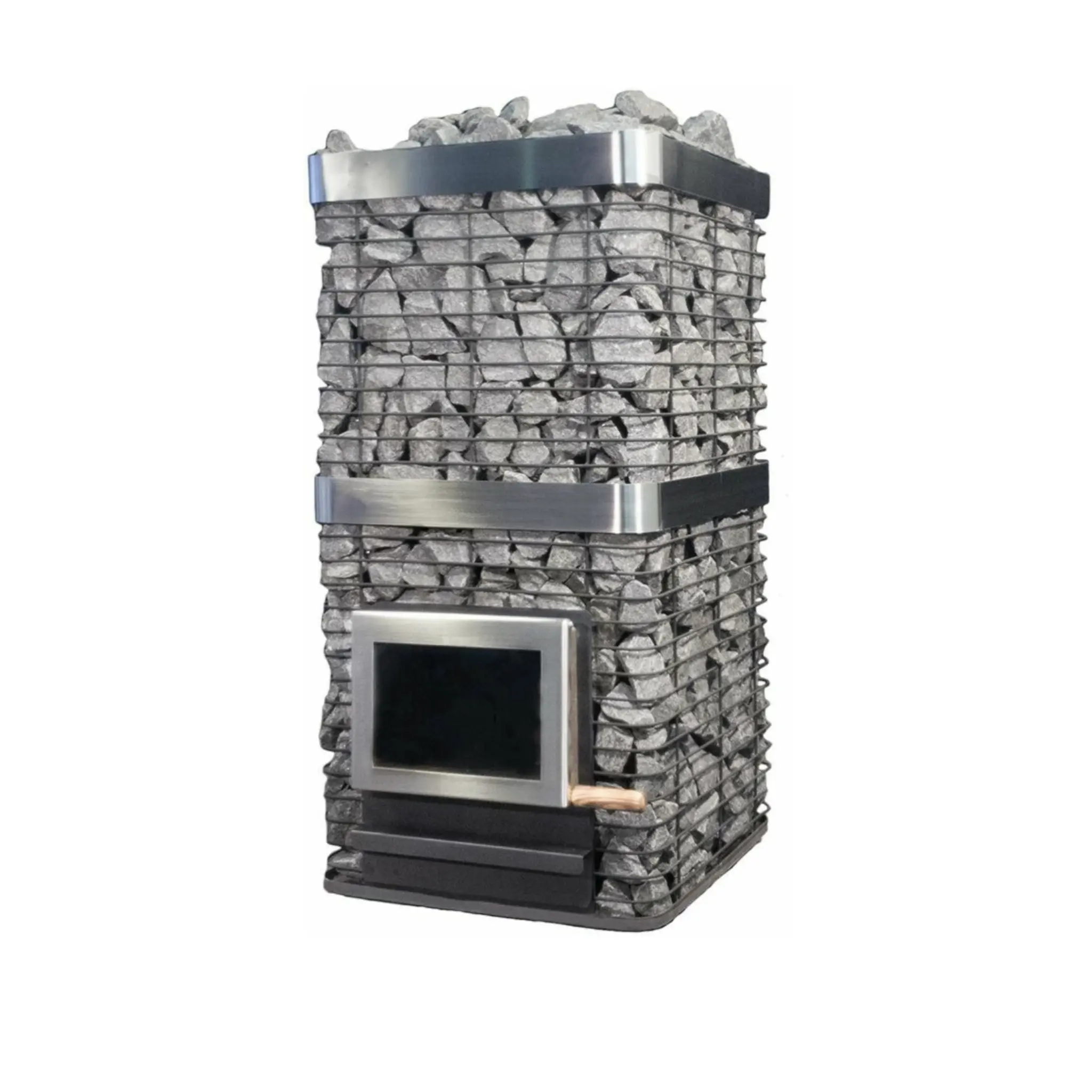

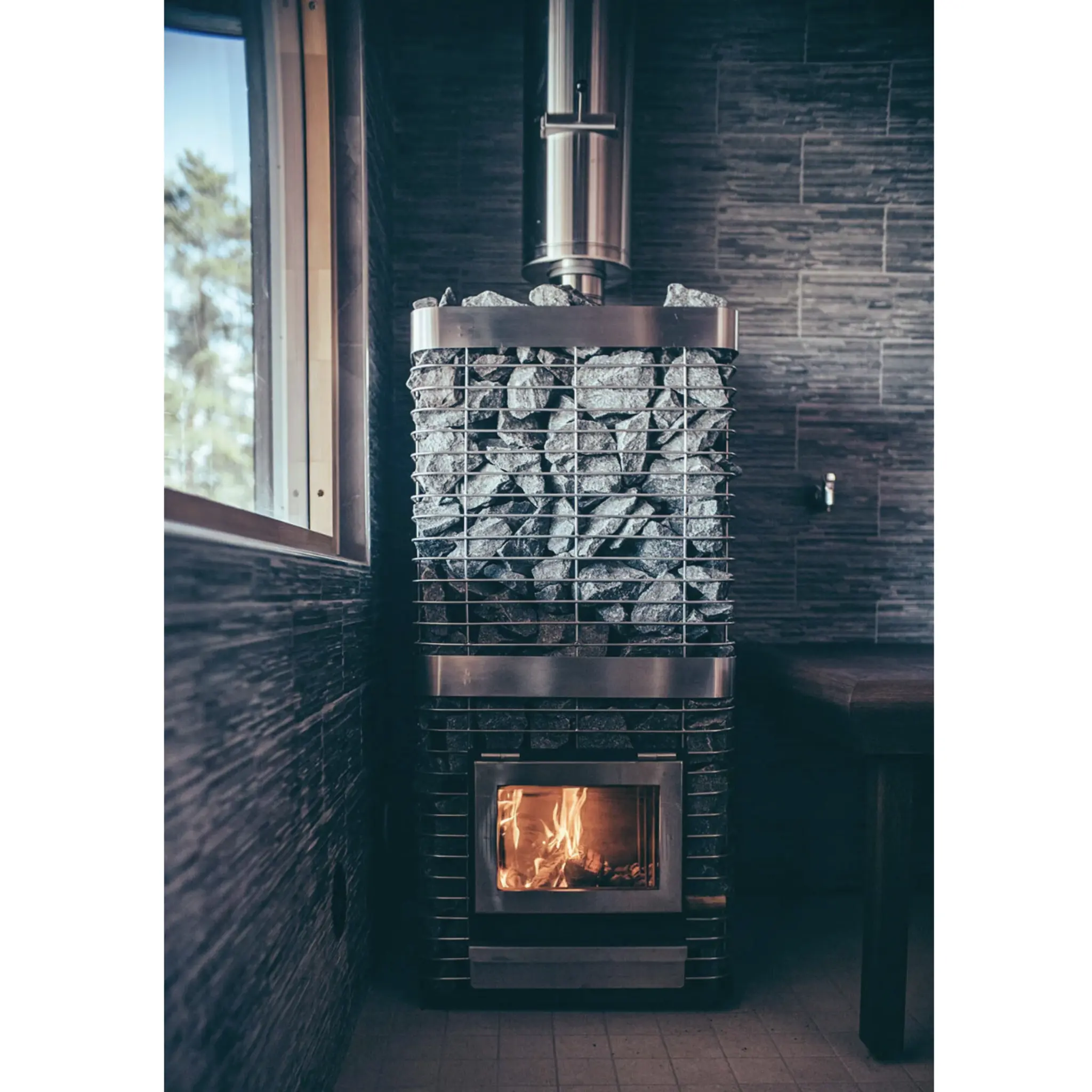

Löyly Loimu wood burning stove, 10–30 m³

Product code: LOYLYLSP223P-XX

The intelligently designed fire surface—formed by the firebox and flue—is embedded within the stone mass, enabling steam to develop early in the heating process. The large fire surface ensures the stove heats evenly and extremely efficiently, storing heat in the stones for a long time with minimal firewood.

The stove features an impressively wide firebox that allows you to place logs crosswise, just like in a fireplace. This enables more even and efficient burning of the wood.

The stove is suitable for saunas with a volume of 10–30 m³.

Product information:

• Brand: Löyly
• Certifications and Approvals: CE marked
• Country of Manufacture: Finland
• Warranty: 4 years

Product dimensions:

• Height (mm): 1280
• Width (mm): 616
• Depth (mm): 695
• Flue outlet diameter (mm): 115
• Weight (kg): 130

Product features:

• Color options: Black or Stainless Steel
• Material: Stainless steel
• Stove type: Cage-style heater
• Water tank included: No
• Recommended stone size: 10–15 cm
• Door type: Glass door
• Reversible door hinge: Yes
• Adjustable legs: 0–5 cm
• Firebox cover thickness (mm): 6
• Max log length: 45 cm
• Suitable log diameter: 8–15 cm
• Nominal power (kW): 25
• Sea water resistant: No
• Firebox dimensions (H x W x D mm): 500 x 434 x 500
• Required chimney temperature class: T600
• Flue outlet location from rear edge to center of opening (mm): 136
• Flue outlet height from floor to bottom of opening (mm): 1195
• Max stone capacity (kg): 450

Installation and usage:

• Minimum sauna volume (m³): 10
• Maximum sauna volume (m³): 30
• Safety distance to ceiling (mm): 1000
• Safety distance to sides (mm): 100
• Safety distance to front (mm): 1000
• Safety distance to rear (mm): 100
• Flue connection location: Top

Package dimensions and weight:

• Package width (mm): 800
• Package height (mm): 1300
• Package depth (mm): 1200
• Shipping weight (kg): 178
