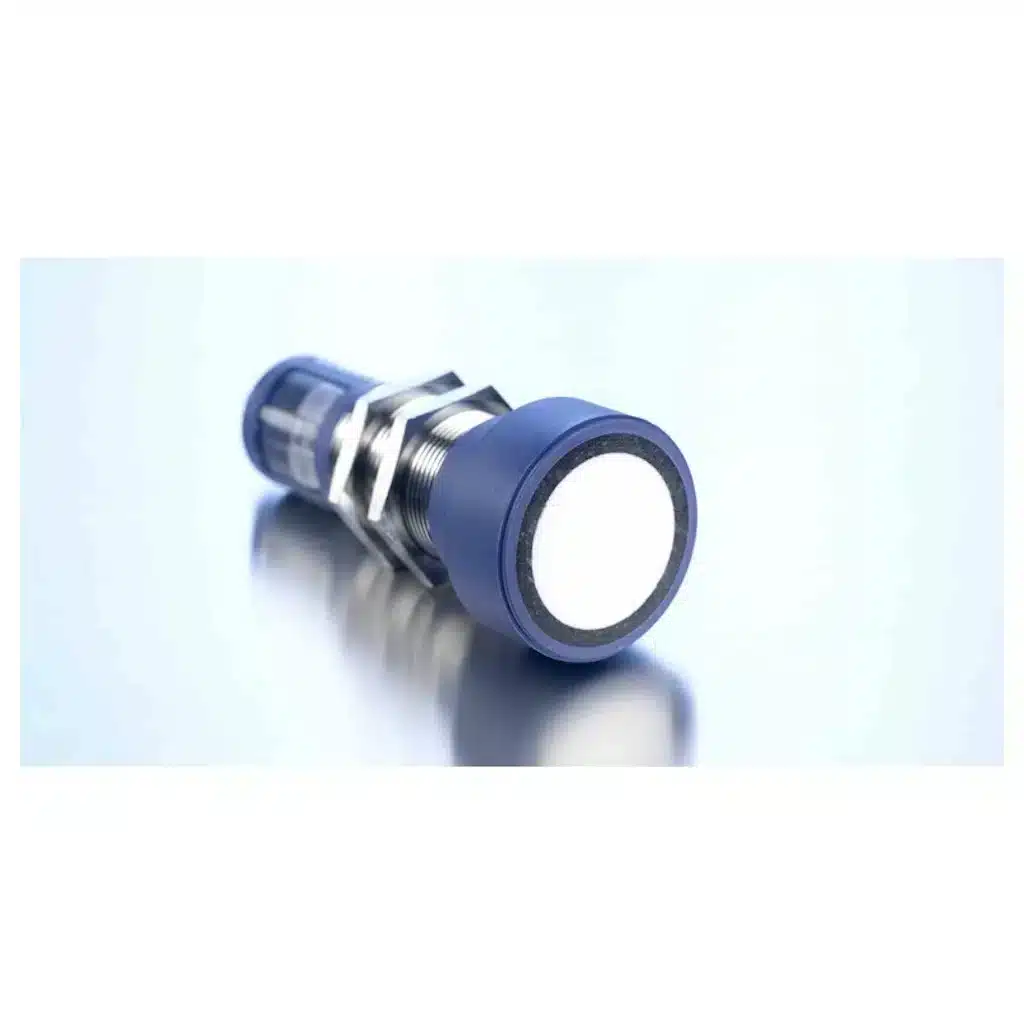

MIC+340/DIU/TC ultrasonic sensor, 9-30DC, M30, with display 350-5000MM, PNP + 0-10V/4-20MA, M12 plug, IP67

The mic+ Sensor with one analogue output and one switching output measures the distance to an object within the detection zone contactless. A signal proportional to distance is created and the switching output is set according to the adjusted detect distance.

Technical information:

Model: mic+340/DIU/TC
Blind zone: 350 mm
Operating range:  3400 mm
Maximum range: 5000 mm
Supplier: Microsonic
Power supply: 9-30V DC
Series: mic+
Measurement range: 350-5000 mm
Working temperature: -25˚…+70˚C
Protection class: IP67
Housing: Metal/plastic

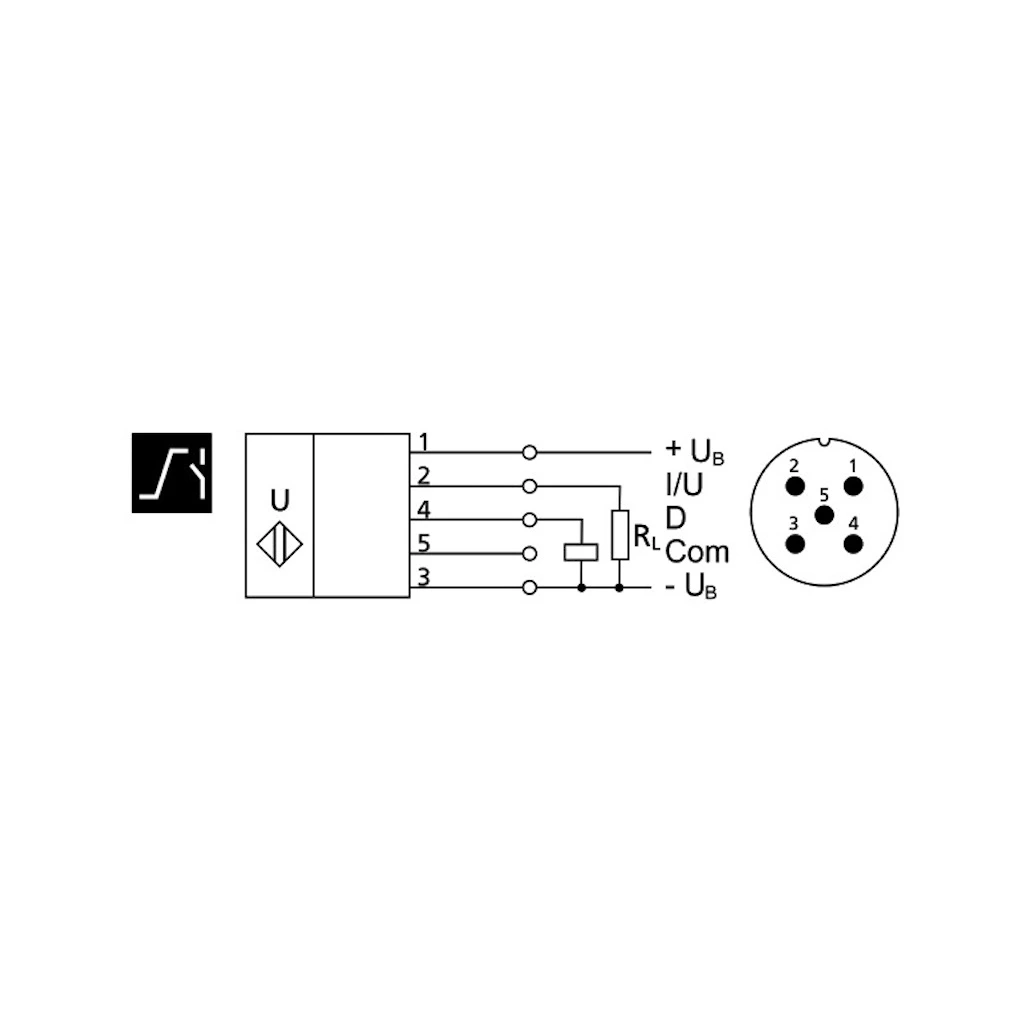

Connection type: M12 plug
Output: PNP + 0-10V/4-20mA
Shape: Cylinder

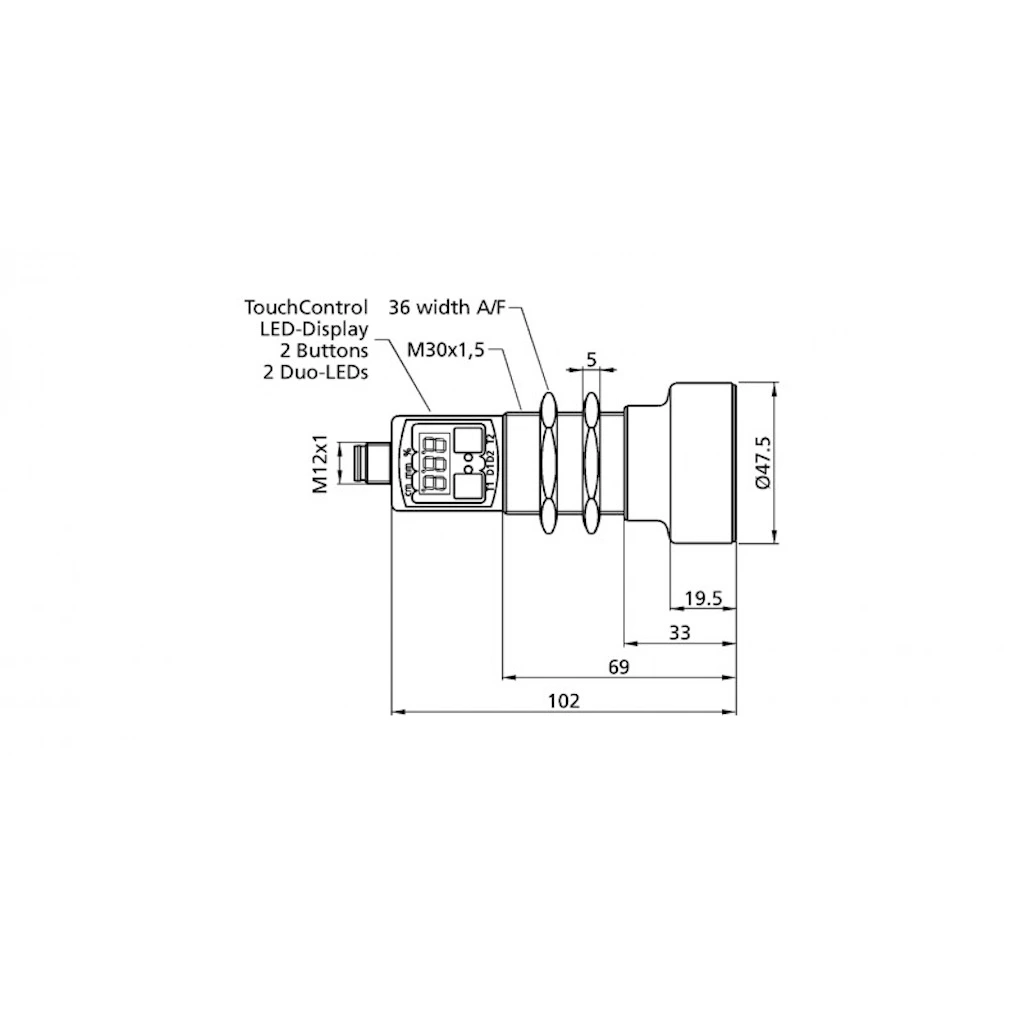

Diameter: 30 mm

User manual

MIC+340/DIU/TC
