QTB stainless steel wall brackets

0.0

QTB stainless steel wall brackets provide durable and reliable support for fixed and sliding points. Made from high-quality AISI 316L stainless steel, they ensure strong load-bearing capacity and resistance to weather conditions. Ideal for concrete, masonry, and stud walls, with various fastening options available.

Tnot inc. VAT.

€0.00

Amount

Technical information:

Bracket Type	Usage	Fastener Requirements	Dimensions	Item Number

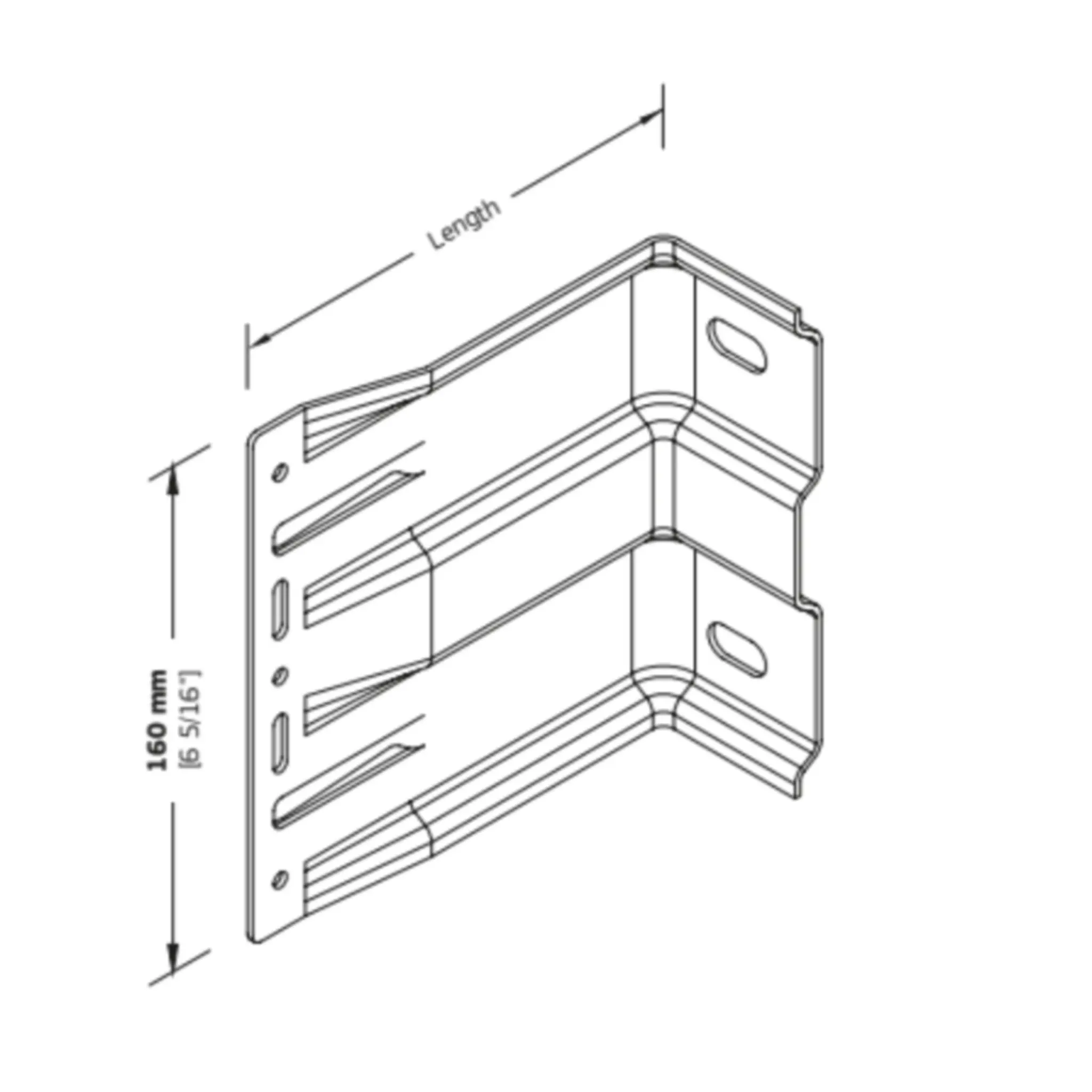

Double Bracket	Used for fixed point / dead load support – absorbs dead load and part of wind load.	Fasteners at the fixed point must be installed in the round holes.	160 mm [6 5/16”] height	02.4.length.160.10 (Ø10 mm fastener, concrete/masonry walls), 02.4.length.160.63 (Ø6.3 mm fastener, stud walls)

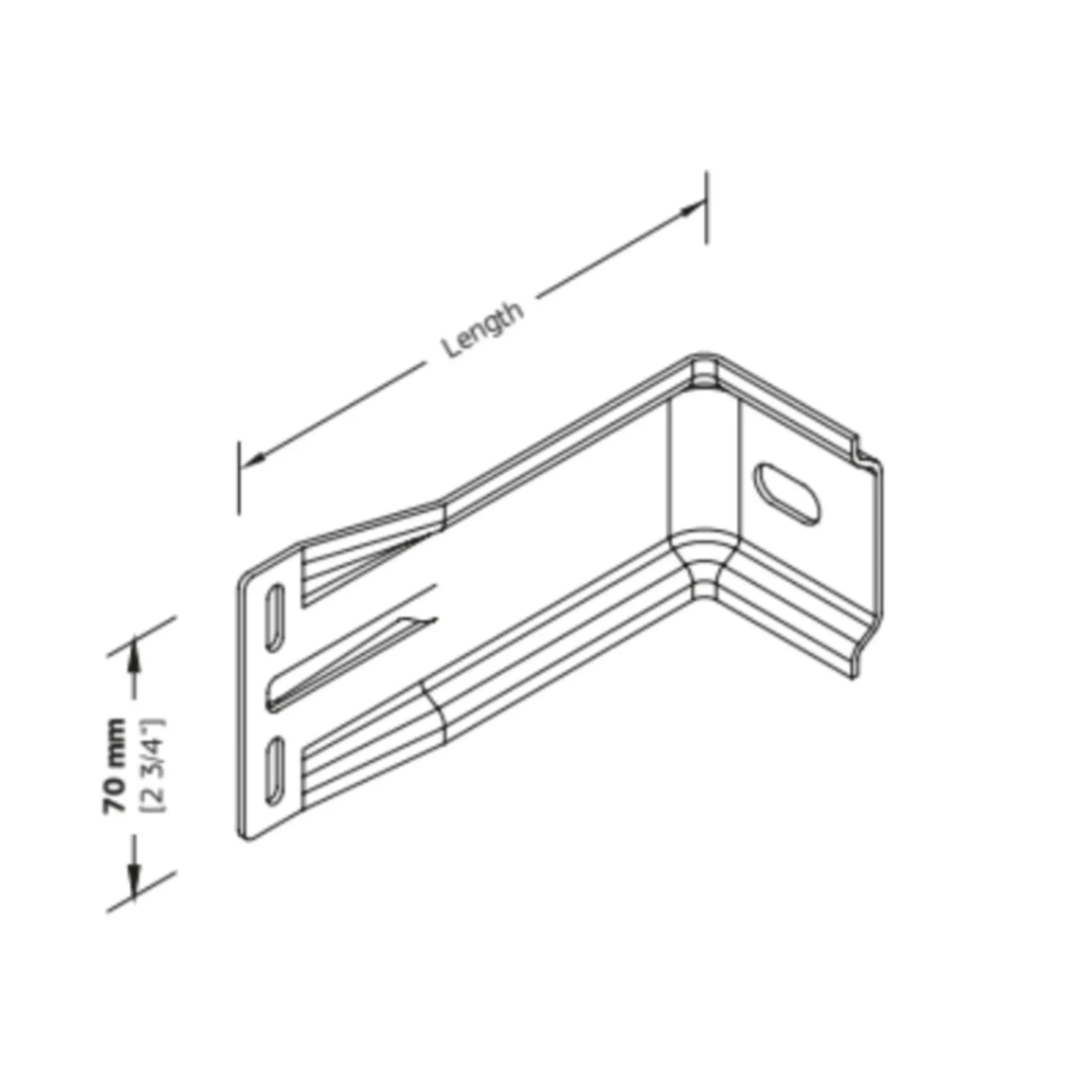

Single Bracket	Used for sliding point / wind load support only – absorbs wind load and thermal movement of the profile.	Fasteners at the sliding point must be installed centered on the slotted hole to allow the profile to expand/contract freely.	70 mm [2 3/4”] height	02.4.length.70.10 (Ø10 mm fastener, concrete/masonry walls), 02.4.length.70.63 (Ø6.3 mm fastener, stud walls)
