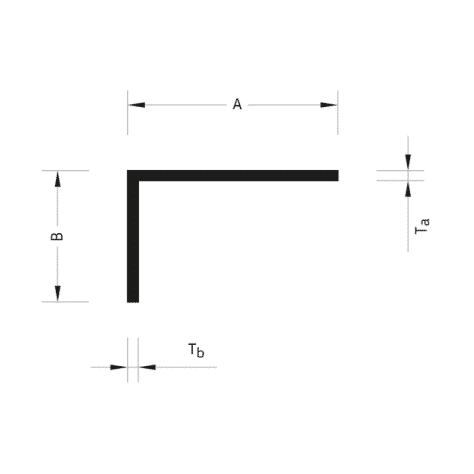

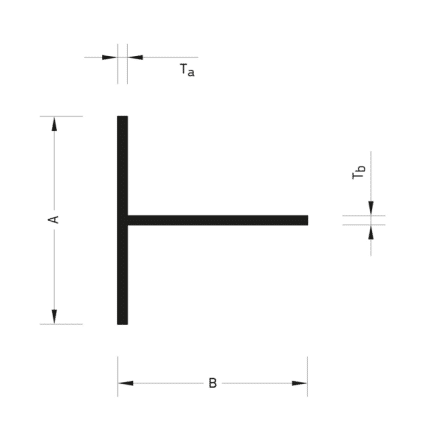

QV1.2 T & L profiles

0.0

Unpainted and 6000 mm [20’] long as standard and without slotted holes as standard.

Three options for horizontal support

Compatible with most cladding materials

Built-in adjustability

Thermally broken by means of thermo-pads

A1 non-combustible

100% recyclable

Tnot inc. VAT.

€0.00

Amount

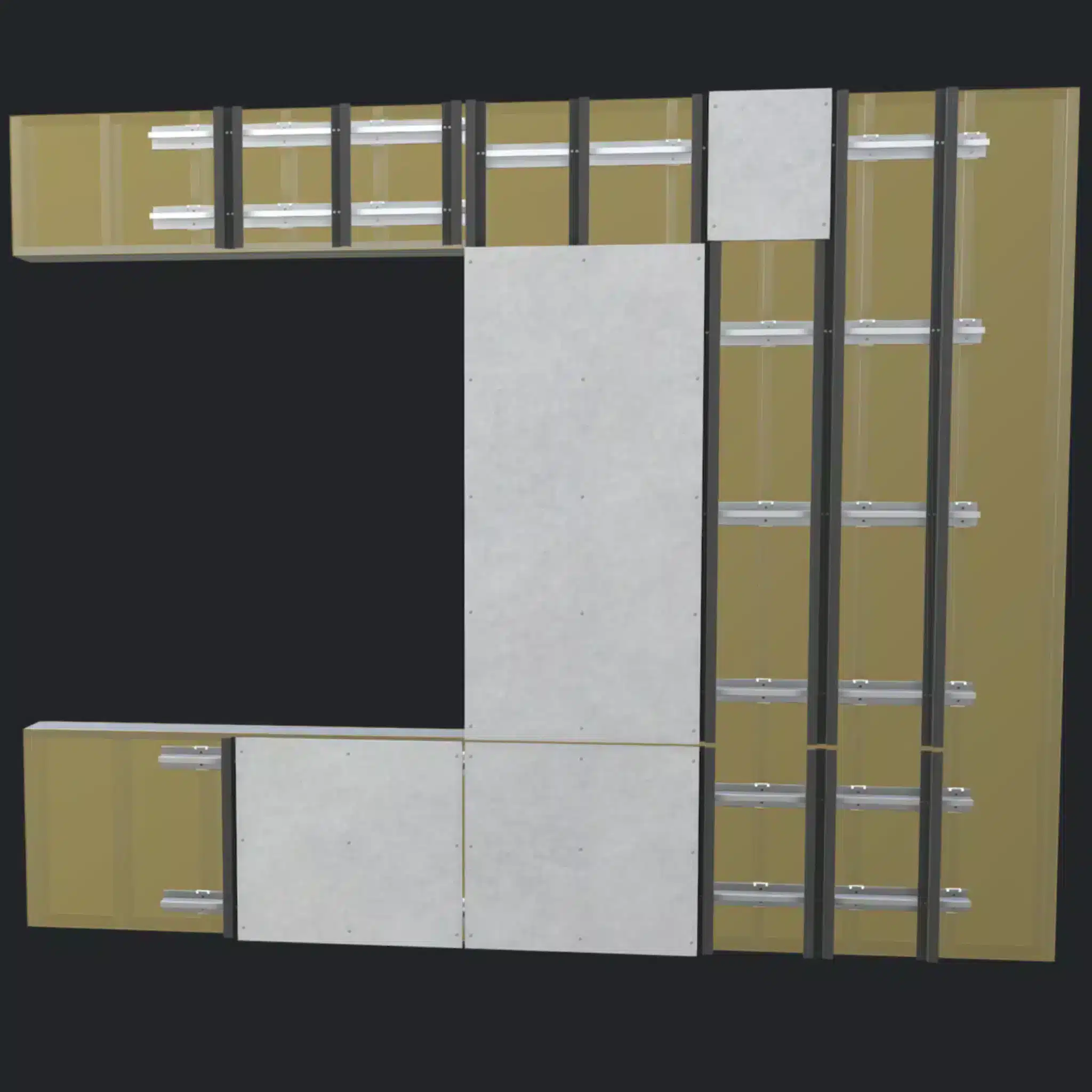

The QV1.2 system is an exposed attachment system designed for stud walls and where a horizontal
support is required for the vertical rails. The panels are attached to vertical HAT and J rails using visible
fasteners.

The vertical rails are attached to one of the following configurations of horizontal supports:

Continuous horizontal HAT /J / Z rails attached directly to the wall.
Continuous horizontal T rails fixed to the stud wall and L clips, at every vertical rail, fixed to the horizontal T rail.
Continuous L rails attached to QHB wall brackets.
All options can come with thermo-pads to reduce thermal bridging and prevent galvanic corrosion.

Thermal performance:

The use of thermo-pads reduces thermal bridging. The strength of the extruded materials allows for fewer wall brackets and
screw penetrations to the wall compared to other attachment methods.
A given system’s thermal performance varies significantly depending on the wall build-up, exterior insulation depth, cladding
materials, and wall bracket spacing. Project-specific thermal modeling is available upon request.

Claddings:

HPL
Fiber-cement
GFRC
Stone
Ceramic
ACM
Metal panels

L profiles can be ordered with pre-fabricated slotted holes, upon request.

Finishes:

Unpainted or mf as standard
Powder-coated in RAL 7021, Class 1 Qualicoat
Anodized E6/C35 (black) 12 μm
Special RAL colours and other Qualicoat classes, as well as anodized thicknesses and finishes, upon request

Components	Material	Notes
Horizontal and vertical rails	Extruded aluminum, alloy AW 6063 T66	Unpainted, RAL painted, anodized 12 µm (or more upon request)
QHB wall brackets	Extruded aluminum, alloy AW 6063 T66	Cavity depth – check the latest company delivery program; typically unpainted.
L clips	Extruded aluminum, alloy AW 6063 T66	Typically unpainted.
Accessories	Extruded aluminum, alloy AW 6063 T66 or T6; aluminum sheet alloy AW 5754 H22	Unpainted, RAL painted, anodized 12 µm (or more upon request).
QHB thermo-pads	Polypropylene	–
Fasteners	Stainless steel or with corrosion-resistant coating	–
