QVB aluminium mid brackets

0.0

QVB wall brackets are usually used for fixed point / dead load support - absorbs dead load and part of wind load. Fasteners at the fixed point must be installed in the round holes.

Tnot inc. VAT.

€0.00

Amount

Brackets can be ordered with pre-installed thermo-pads.

Material: Polypropylene
Thickness: 5 mm [3/16”]

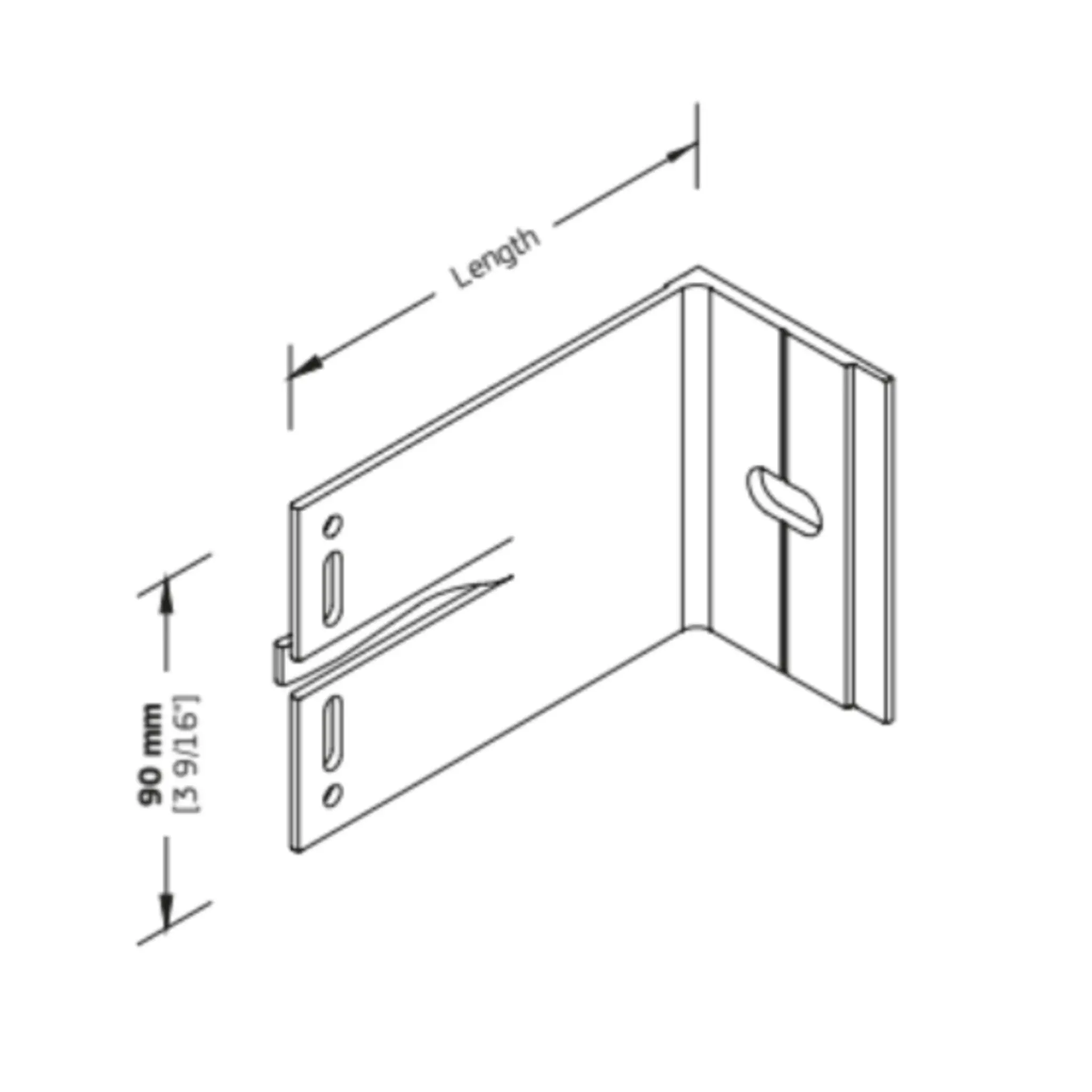

Item No: 02.lenght.90.fastenerT (e.g. 02.100.90.10T)

Technical specifications:

Length	Item No.	Weight/pc	Package pcs
50 mm [1 15/16”]	02.50.90.10	91 g [0.205 lb]	180
75 mm [2 15/16”]	02.75.90.10	118 g [0.266 lb]	150
100 mm [3 15/16”]	02.100.90.10	115 g [0.260 lb]	180
125 mm [4 15/16”]	02.125.90.10	136 g [0.308 lb]	170
150 mm [5 7/8”]	02.150.90.10	165 g [0.373 lb]	150
180 mm [7 1/16”]	02.180.90.10	193 g [0.436 lb]	100
210 mm [8 1/4”]	02.210.90.10	236 g [0.531 lb]	100
240 mm [9 7/16”]	02.240.90.10	274 g [0.619 lb]	100

Options:

Bracket-to-wall connection	Item No.
Holes for M10 [3/8” dia.] fastener as standard; suitable for concrete/masonry wall	02.length.90.10
Hole for M8 [5/16” dia.] fastener; suitable for concrete/masonry walls	02.length.90.8
Holes for ø6.3 [1/4” dia.] fastener; suitable for stud walls	02.length.90.63
